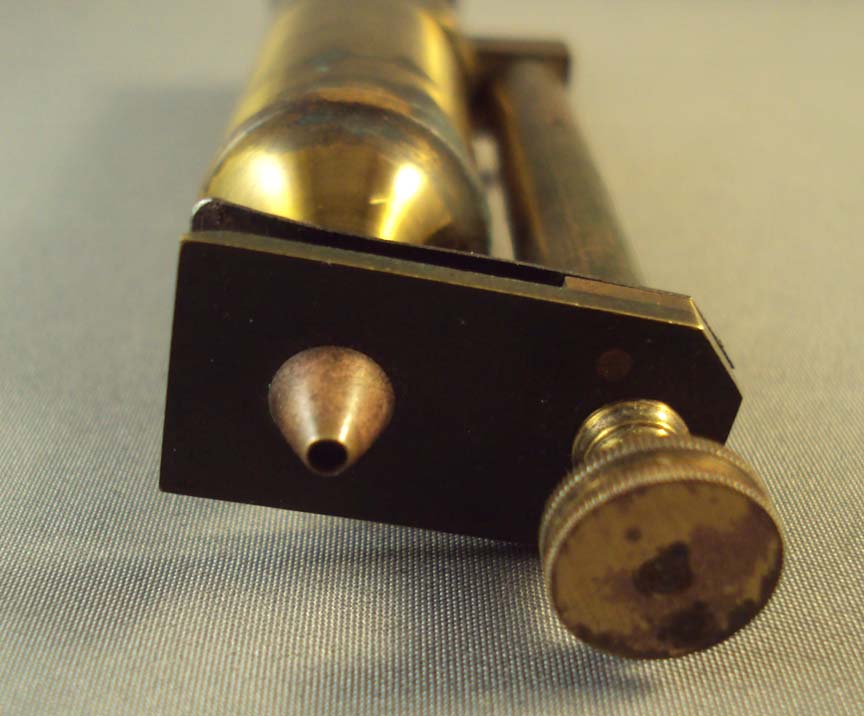

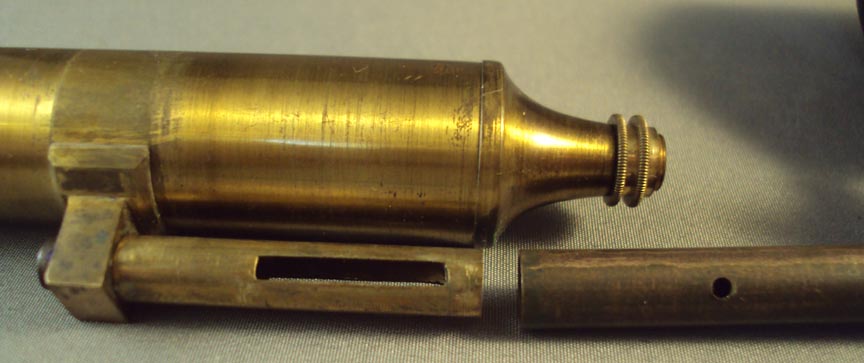

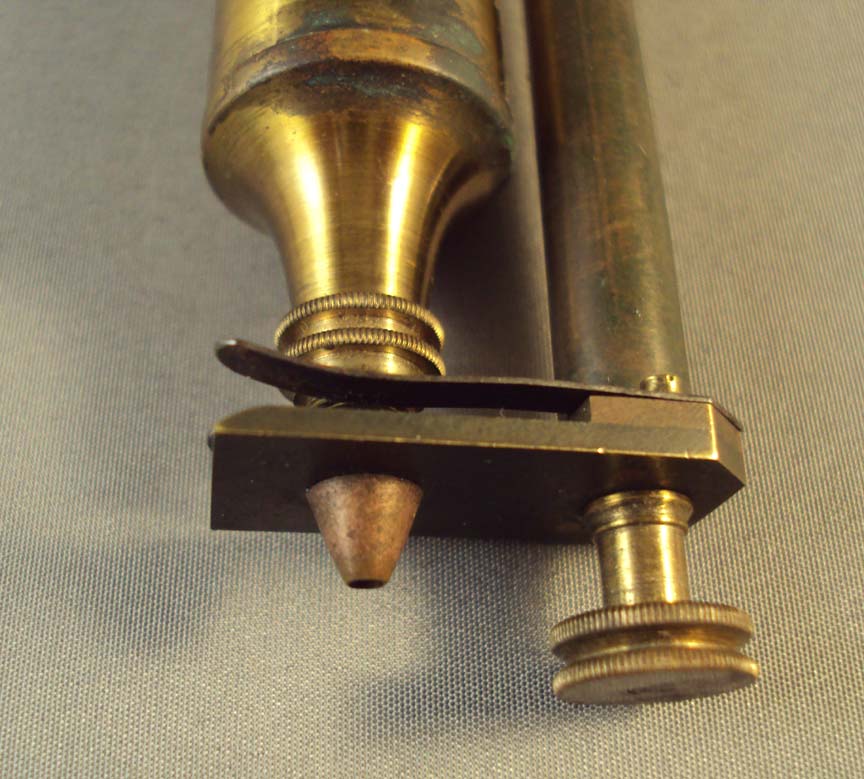

Note the features of this Soleil Pocket Microscope including the cone diaphragm built into the underside of the stage, the focusing knob acting upon the stage passing through it to the limb, and the outer tube fitting over the inner slotted tube. A screw passes through the outer and through the slot of the inner tube, keeping all aligned. A spring inside the tube keeps the adjustment taut.

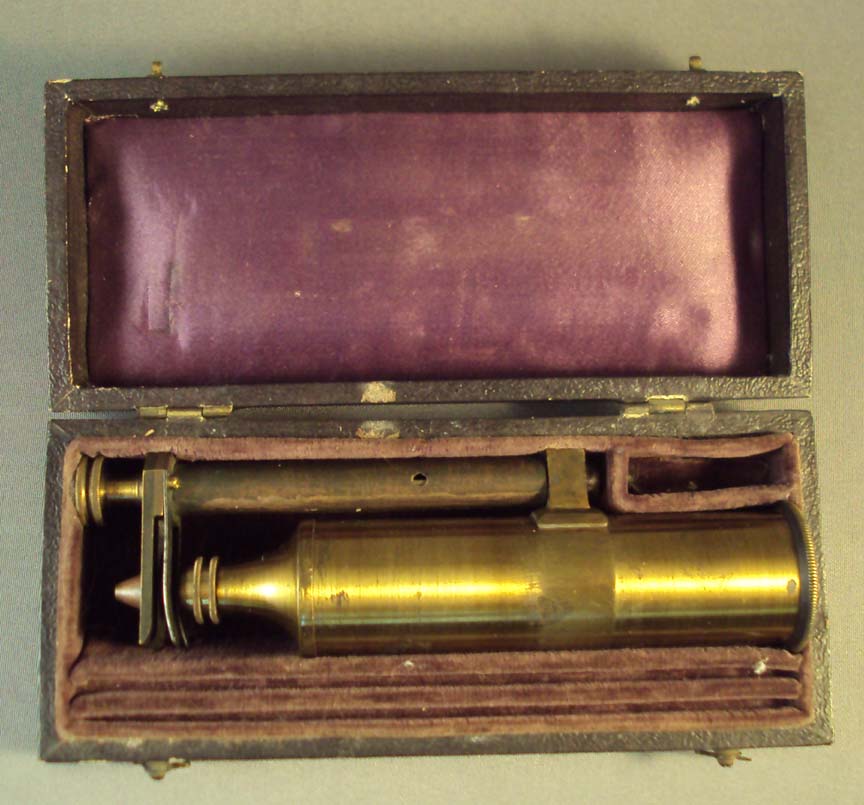

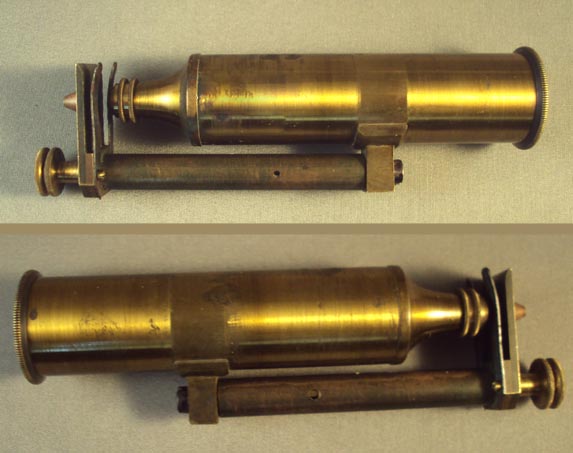

Soleil Pocket Microscope Soleil Pocket Microscope 2

Soleil Pocket Microscope 5 Soleil Pocket Microscope 7

Soleil Pocket Microscope 6 Soleil Pocket Microscope 4 Soleil Pocket Microscope3
