ACCESSORIES SUPPLIED WITH THE ROSS EXHIBITION MICROSCOPE

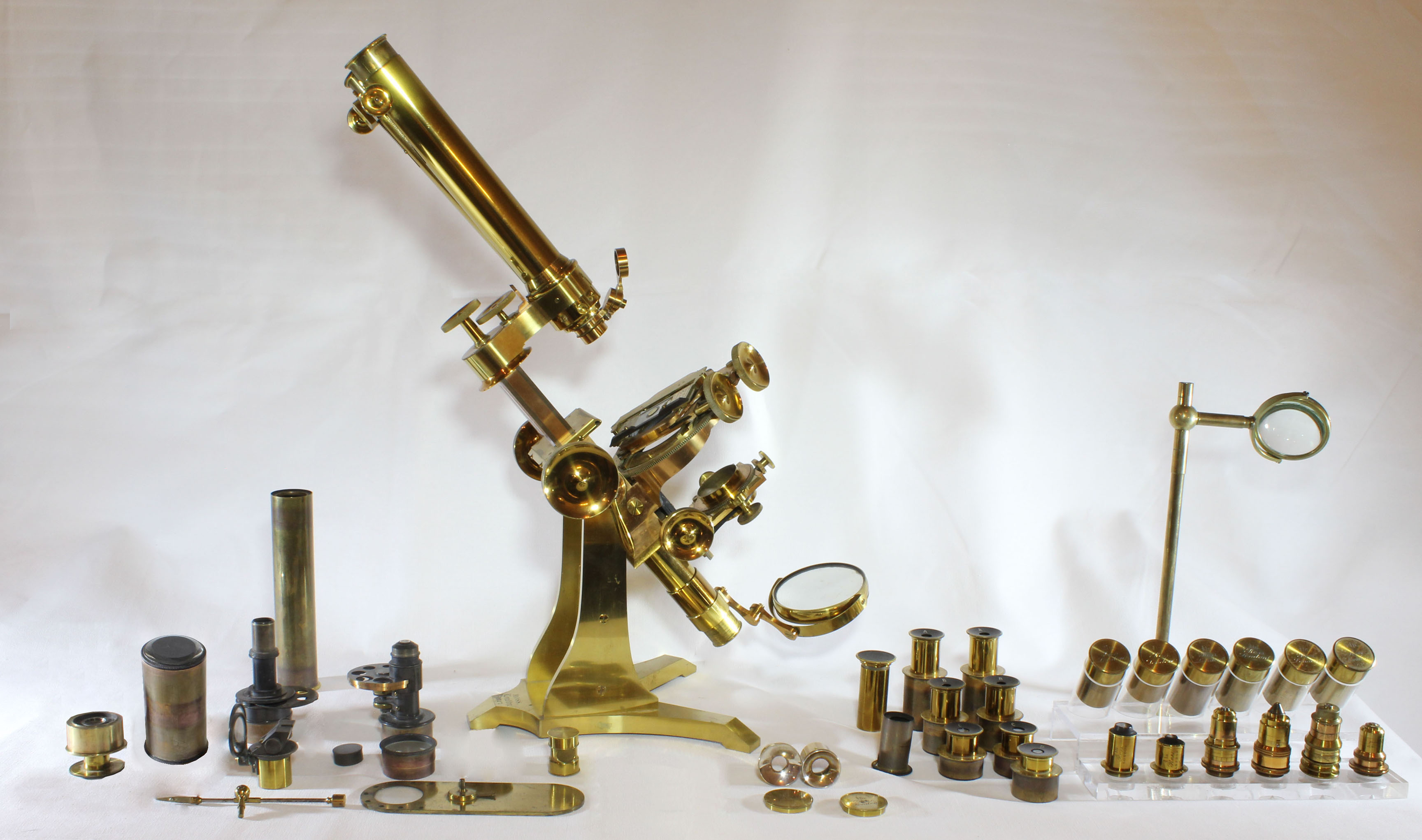

Ross Microscope with Accessories

Welcome to the Ross Exhibition Microscope accessory page. This page features the accessories that came with my example of this microscope. Although these are numerous, many others were available as is evidenced by the many empty fittings in the accessory case. Those present include an assortment of eyepieces and objectives, polarization apparatus, accessories for concentrating and varying illumination, and for holding or restraining specimens. There is a also a drawtube for monocular viewing and a drawing aid in the form of a camera lucida.

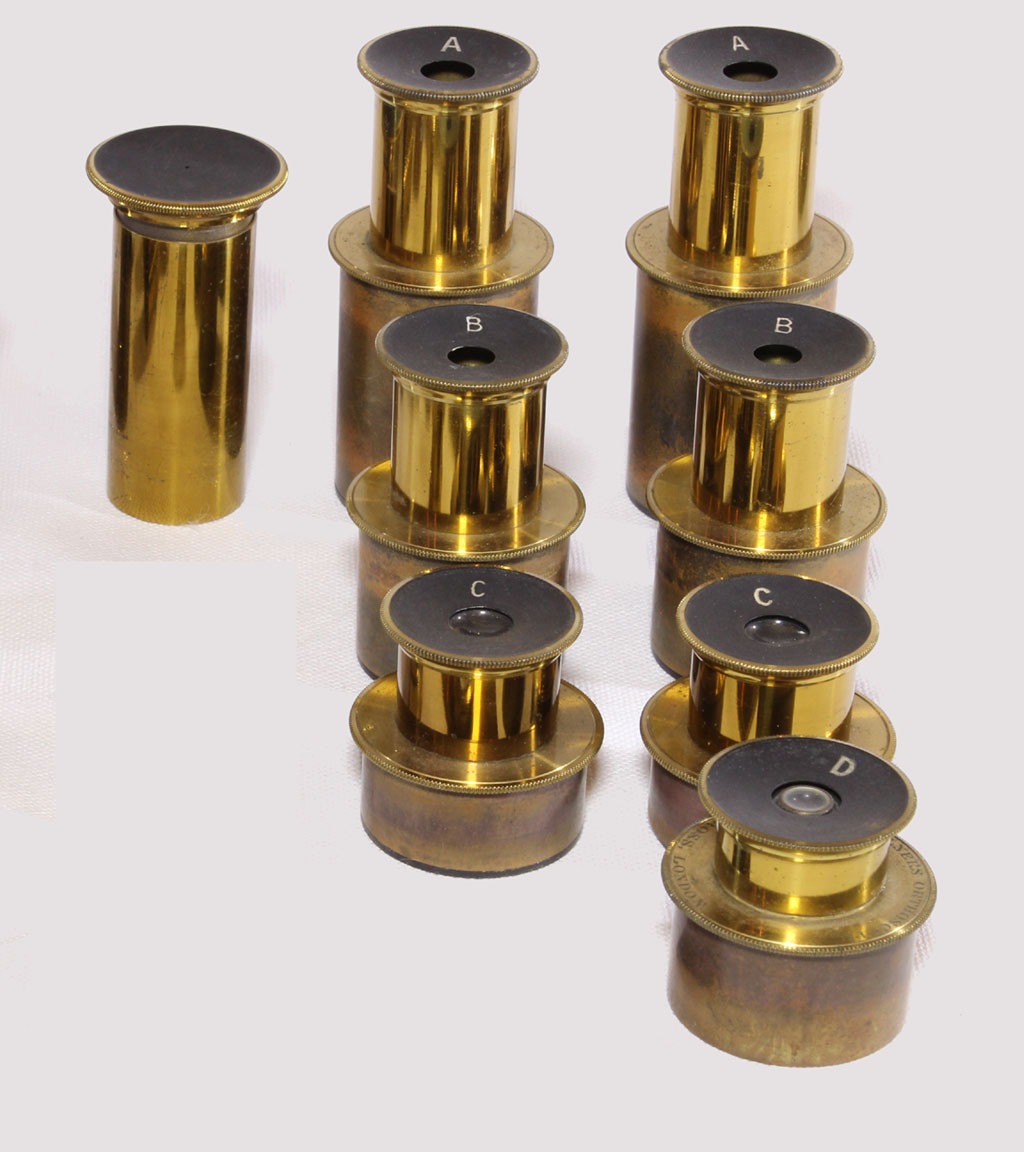

Ross Microscope Oculars The eyepieces, or oculars include pairs labelled A, B, and C and a single high power labelled D and signed Kellner's orthoscopic Ross London. There is also a pinhole eyepiece accessory (without optics inside) which has an adapter to fit over the eyepieces in place of the standard eyepiece cover.

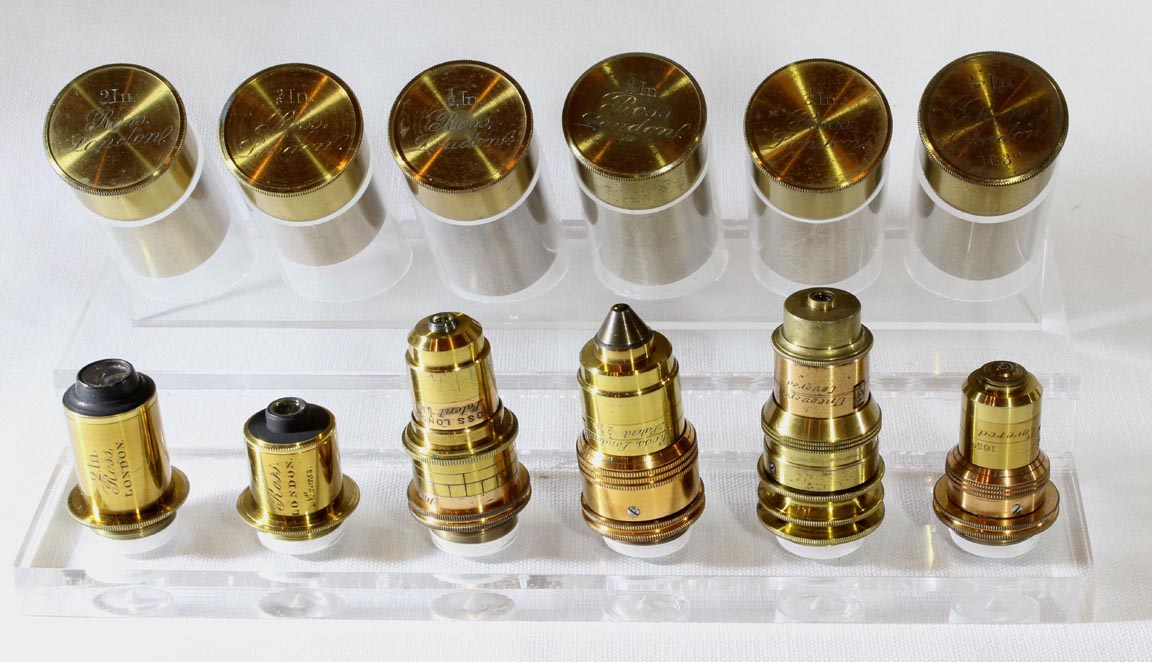

Ross Microscope Objectives

The objectives supplied with the microscope include:


A 2 inch signed: 2 In., Ross, LONDON.,

A 2/3 inch signed: 2⁄3 inch,Ross, LONDON, No: 20383

A 1/2 inch (with cone-shaped tip) signed: Ross London, Patent 1⁄2 In.

A 1/5 inch (with correction collar) signed: Rofs 1858, Uncovered, Covered')

A 1/5 inch (Wet or dry) signed: Dry,     Wet, ROSS LONDON     No: 20308, Patent 1⁄5 In.,

A 1/12 (with correction collar) signed: Rofs    163o     1⁄12 In., London     covered

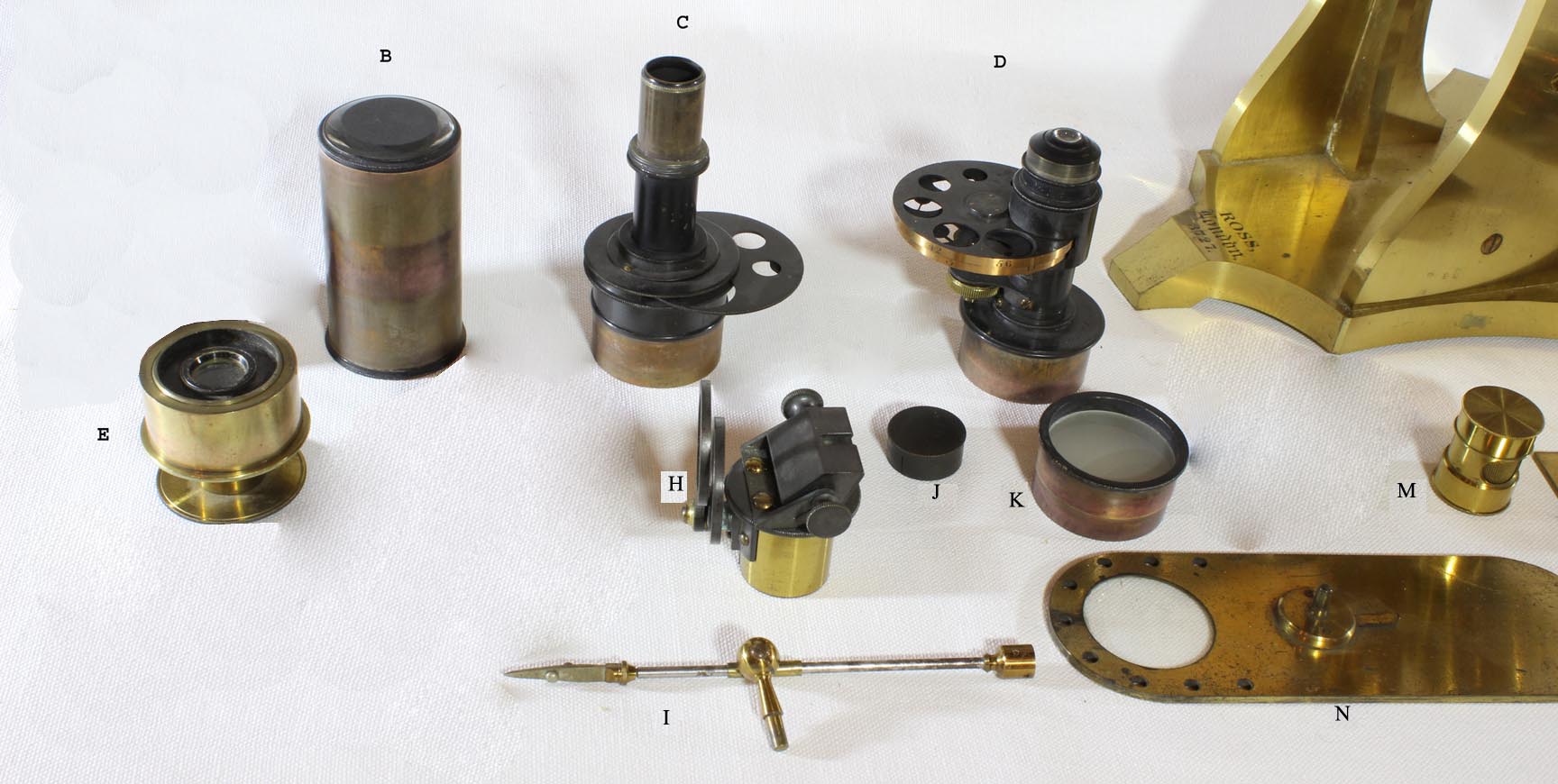

Ross Microscope Accessories

The pictured accessories include:

  • B. Low power dark field condenser
  • C. Early model of condenser
  • D. Late version of Gillett condenser (Ross' Improved 4-10ths Achromatic Condenser)
  • E. Polarizer substage attachment
  • H. Camera lucida
  • I. Stage forceps with cork end
  • J. Cap for Gillette condenser top
  • K. Substage gray light diffuser
  • M. Nosepiece analyzer
  • N. Frog Plate
Ross Microscope Accessories

The pictured accessories include:

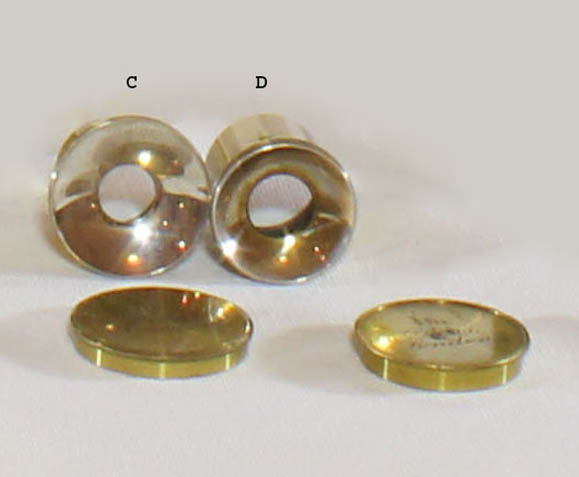

  • C. Lieberkuhn reflector for one inch objectives (with cap signed:1 In., Ross, London)
  • D. Liberkuhn reflector for half inch objectives (signed: 1⁄2 In., Ross, London)
