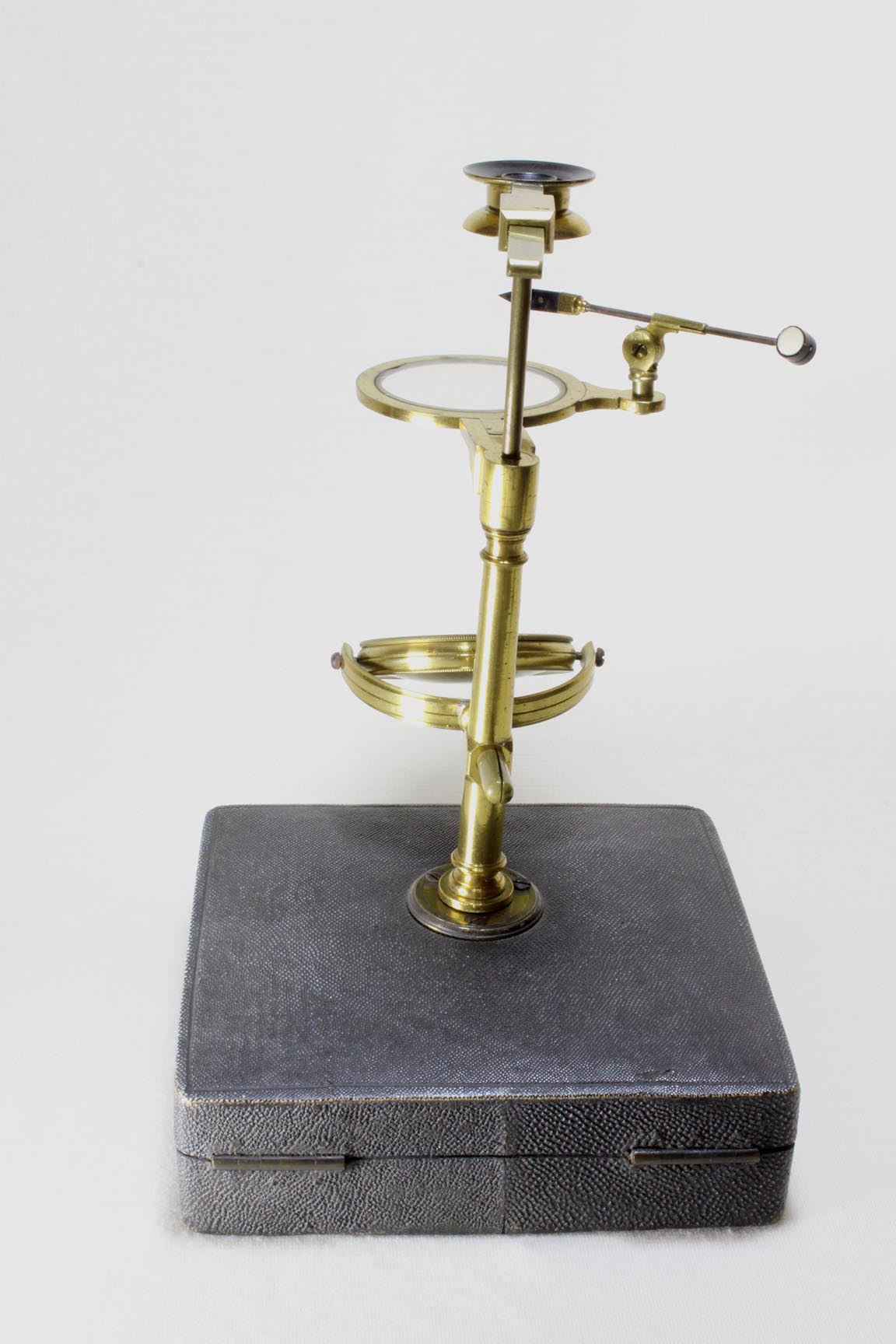

Back Button



c. 1765, unsigned

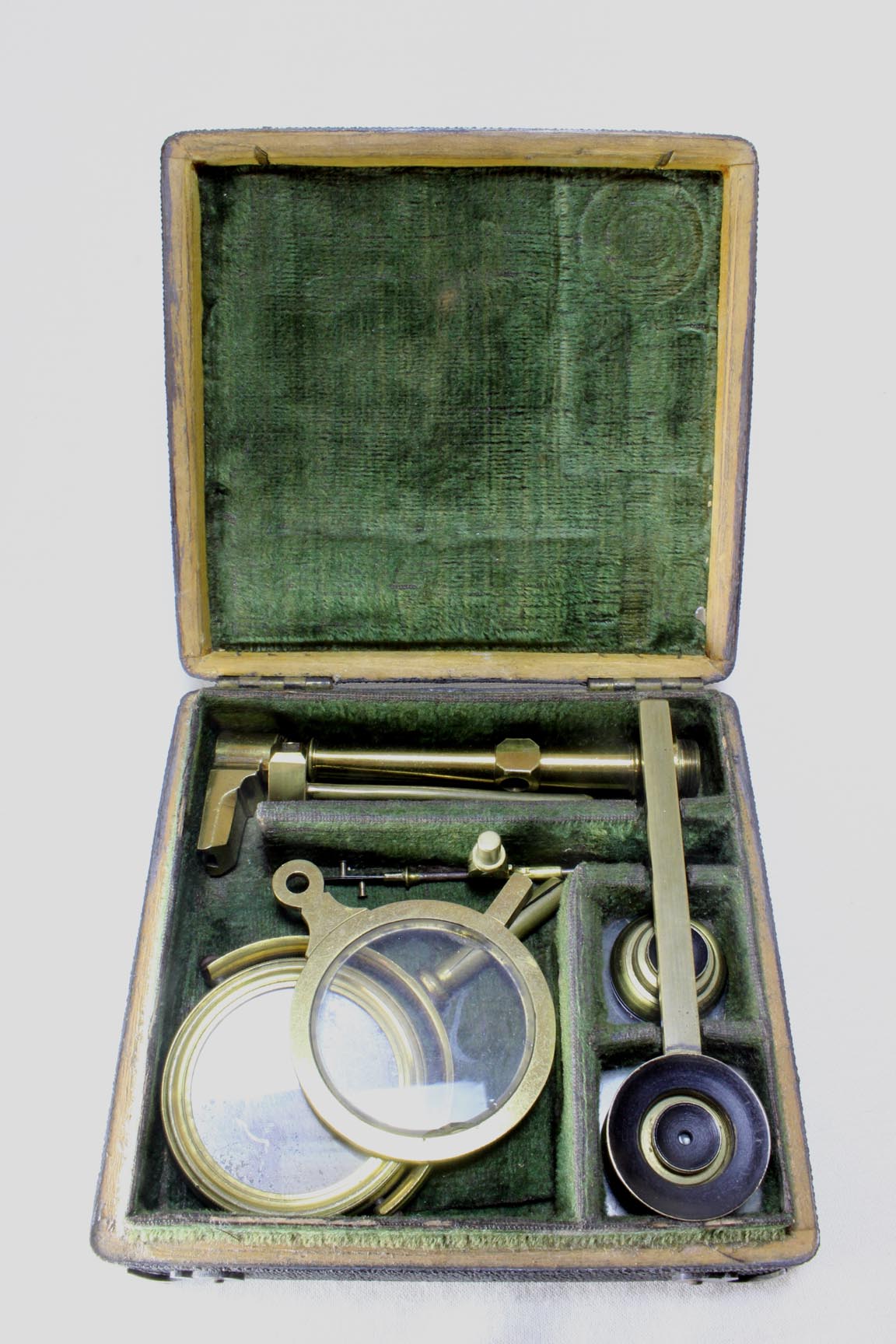

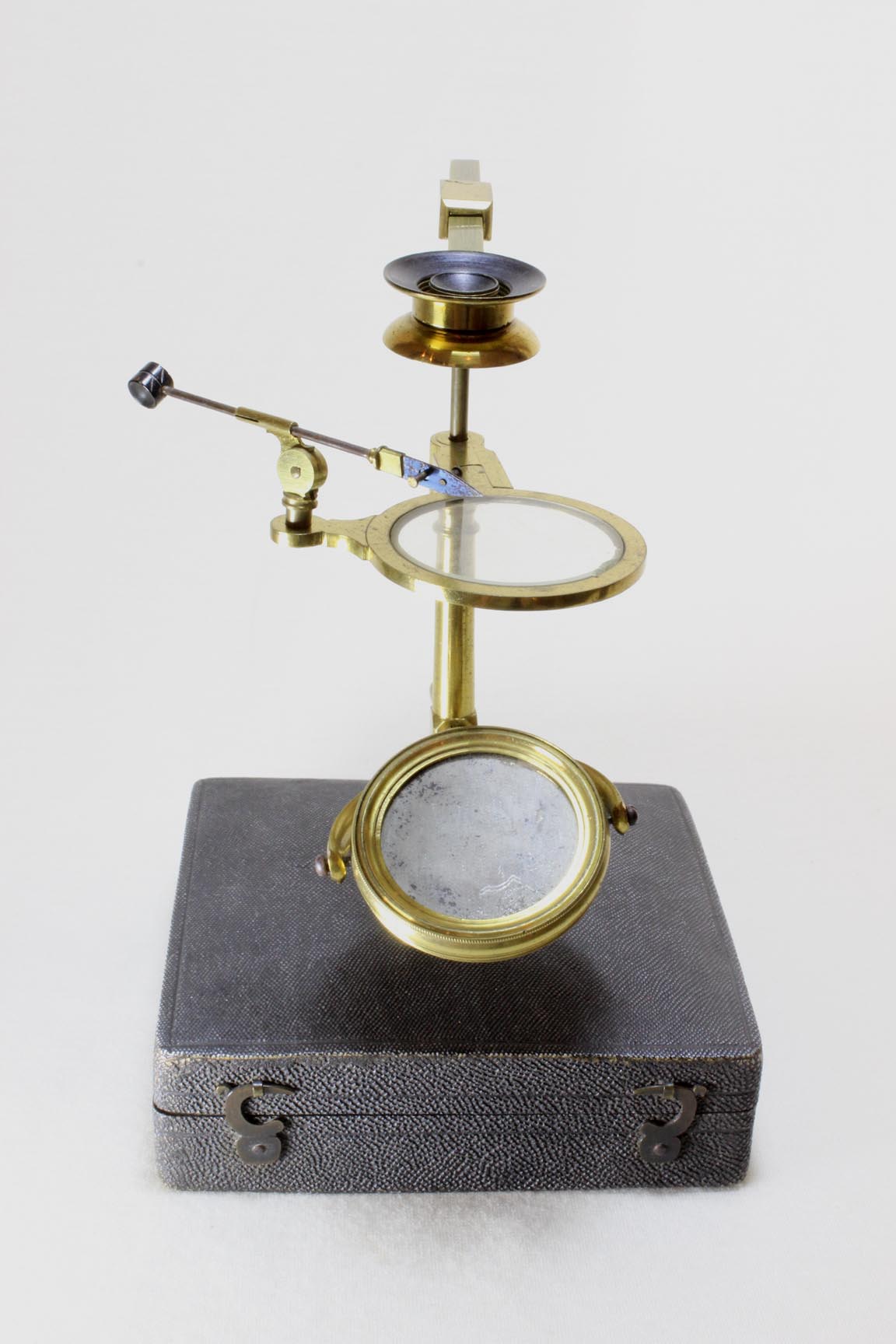

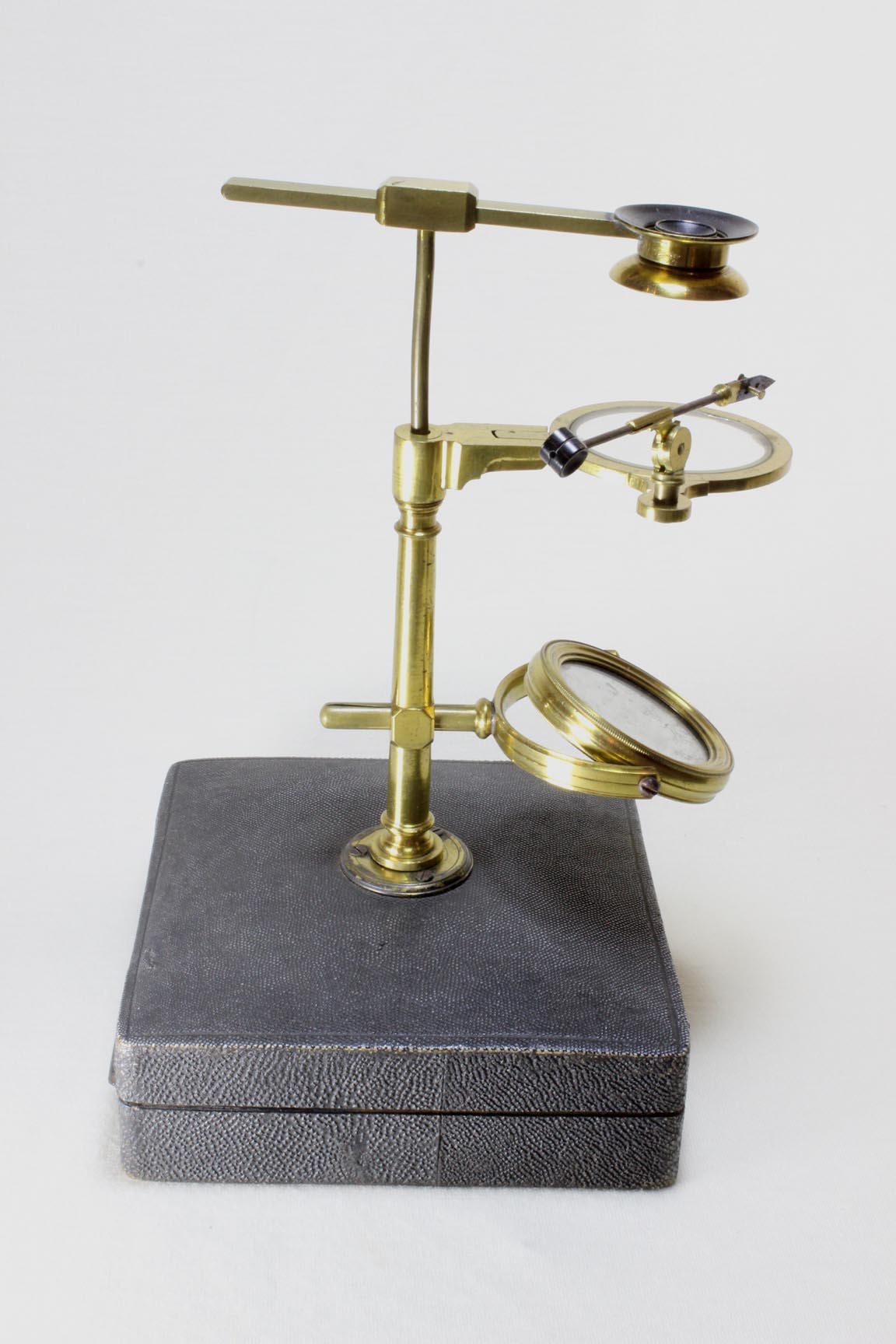

 Microscope  Microscope The pillar of the microscope screws on to a boss on the top of its fish-skin case. The case is black in color and lined with dark green thin velvet. The height from the bottom of the case to the top of the stage is about five inches. Focusing is by pushing down or pulling up the eyepiece support (or arm) which is held in place inside the pillar by cork. The aquatic motion was in two ways. The first was in an arc, left to right or right to left. The second was to push or pull the arm forward or backward through the slot provided. In this way any part of the specimen could be followed as it moved, and any part of a sedentary specimen could be examined. The idea was not to move the stage so as not to disturb specimens such as the Hydra, which were sensitive to motion. Stored in the case are the following:

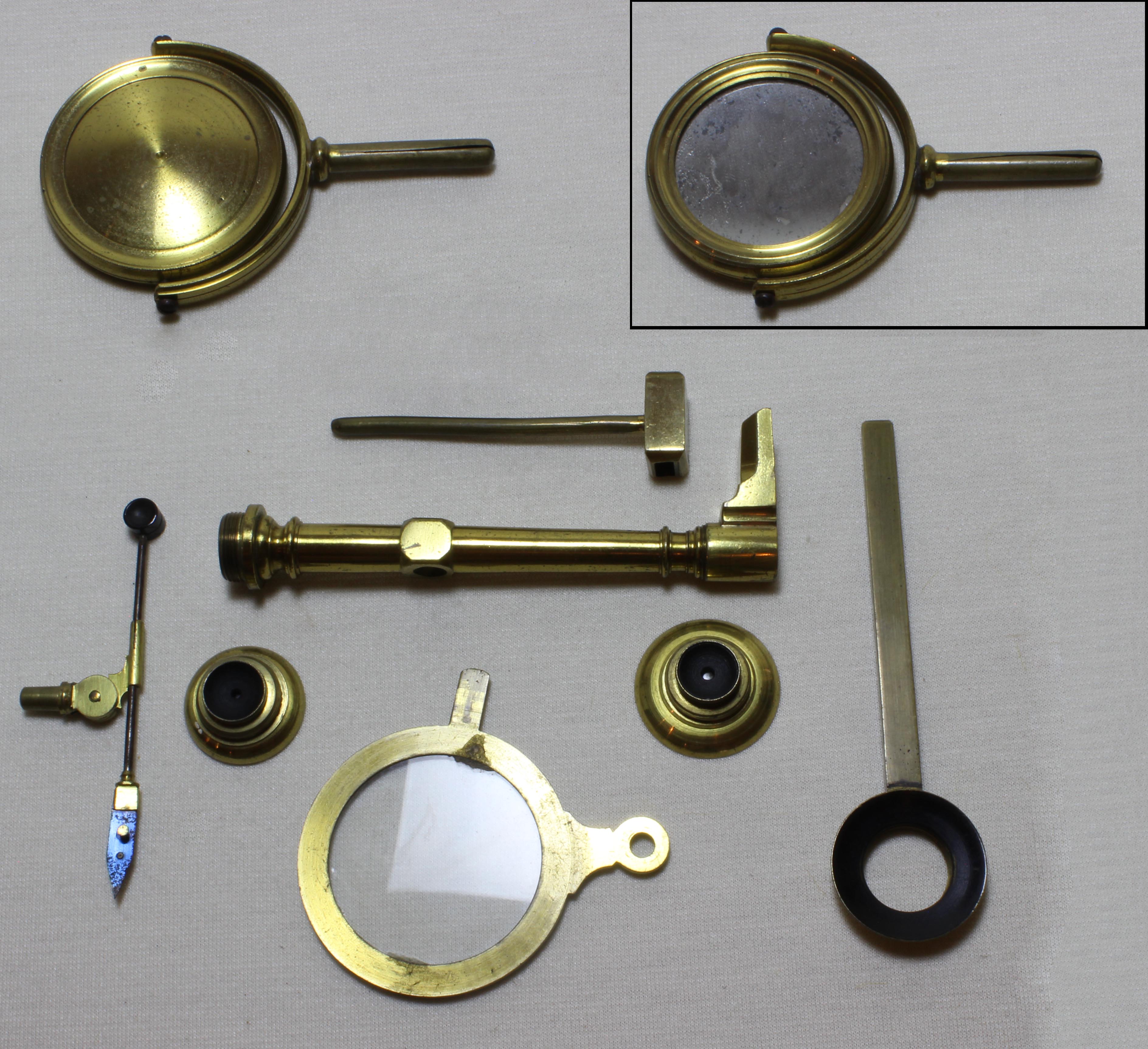

  1. The lacquered brass microscope with
  2. substage mirror fitting into the pillar
  3. brass stage fitting into a dovetailed slot on the pillar with a hole to accept the stage forceps
  4. a glass insert for the stage
  5. the stage forceps

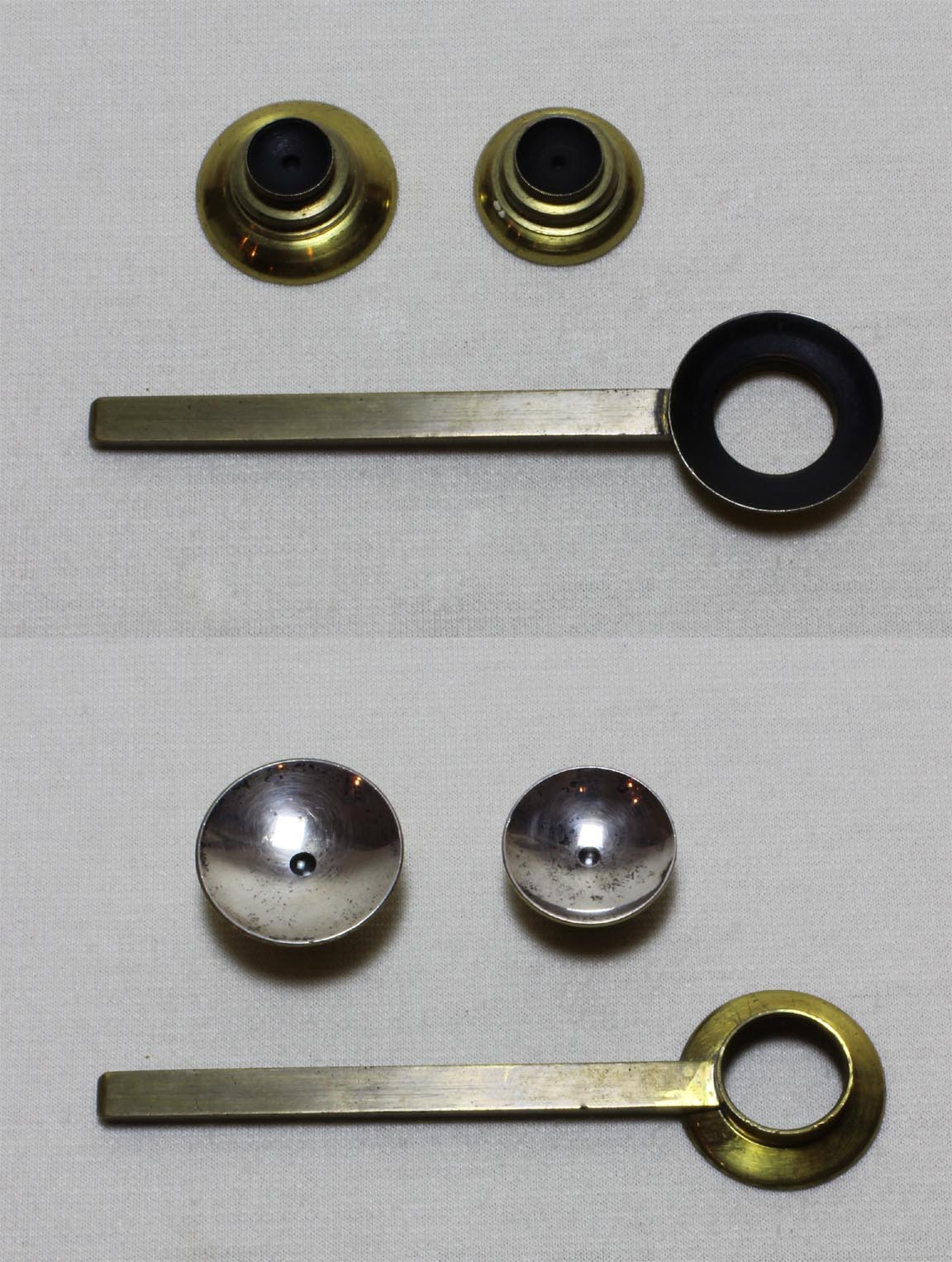

  6. two eyepices both with lieberkuhn reflectors
Both lieberkuhns are stored silvered-side down on small glass plates inside the case to protect the silver from oxidation. The instrument is virtually identical to microscope number 19 in the Whipple Museum (Cambridge, England) Microscope Catalog.

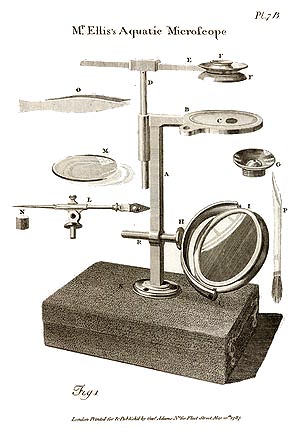

ellis engr What has become known as the 'Ellis Aquatic' type of microscope was actually first invented by Abraham Tremblay before 1744. Around 1745 Cuff made a highly portable simple microscope with a fixed arm and this has been said to be the precursor of the Aquatic or 'Ellis-Type' microscope that John Cuff and Ellis popularized. What is clear is that, under the direction of Ellis, Cuff made a form similar or identical to this one which became the Ellis Aquatic Microscope. Later improvements to this design eventually included rack and pinion focusing, and later, Raspail changed the forward and backward motion of the arm carrying the eyepiece to a fine motion driven by a screw mechanism. Interestingly enough, Raspail (a histochemist) then called this newer form a Chemical Microscope. An example of a Raspail type of Ellis Aquatic microscope, made by Picart, is on this site. It is likely that these instruments were the precursors of later dissecting microscopes. Some models, such as the Picart model and dissecting models made by Ross, had rack and pinion control to the arm as well as the focus.
