BULLOCH CONGRESS MODEL

SERIAL NUMBER: 675

c. 1891

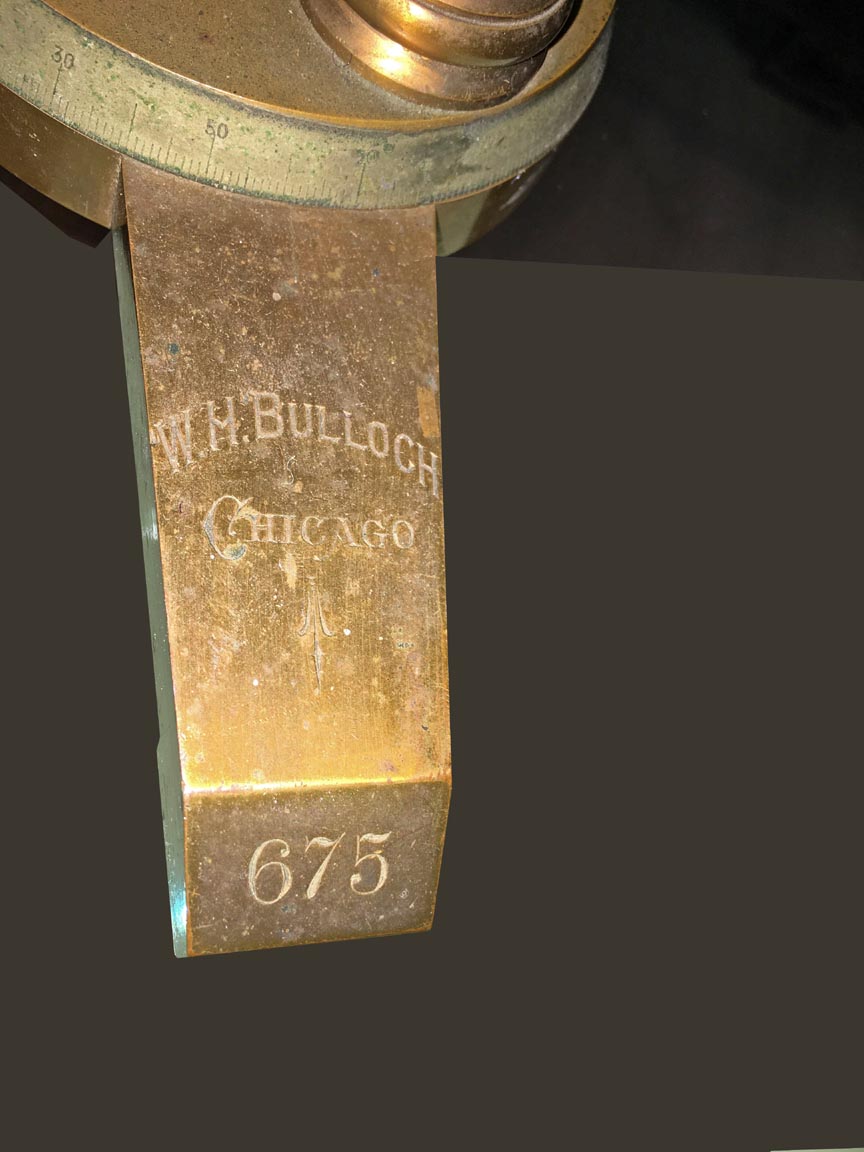

bulloch congress #675

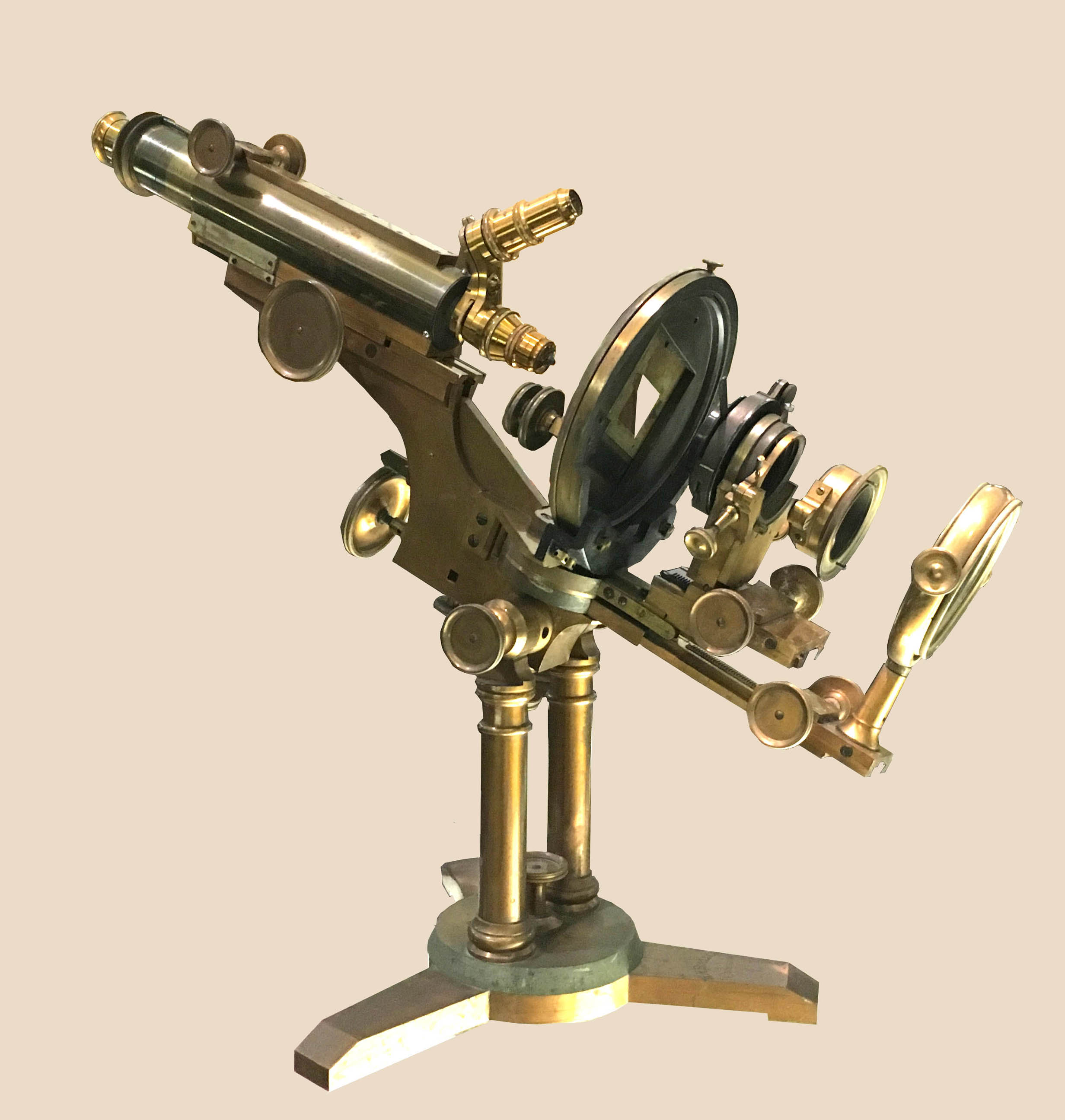

Bulloch 675 sigThis stand illustrates the final form of the Congress microscope. It incorporated the rack and pinion focus to the mirror, a feature first noted in publication in 1890, although it may have been used earlier. This stand also features the use of rectangular straight tailpieces for both mirror and condenser, features first published in 1884 and originally designed to be incorporated into the Biological No. 2 model.Note the third version of the Bulloch Mechanical stage with concentric vertical controls projecting upward from the top of the stage, allowing full stage rotation. (Brooks Collection). I am grateful to the owner for sharing his images of this instrument.
