Mechanical Stage of the Bulloch Compound Microscope, serial number 32

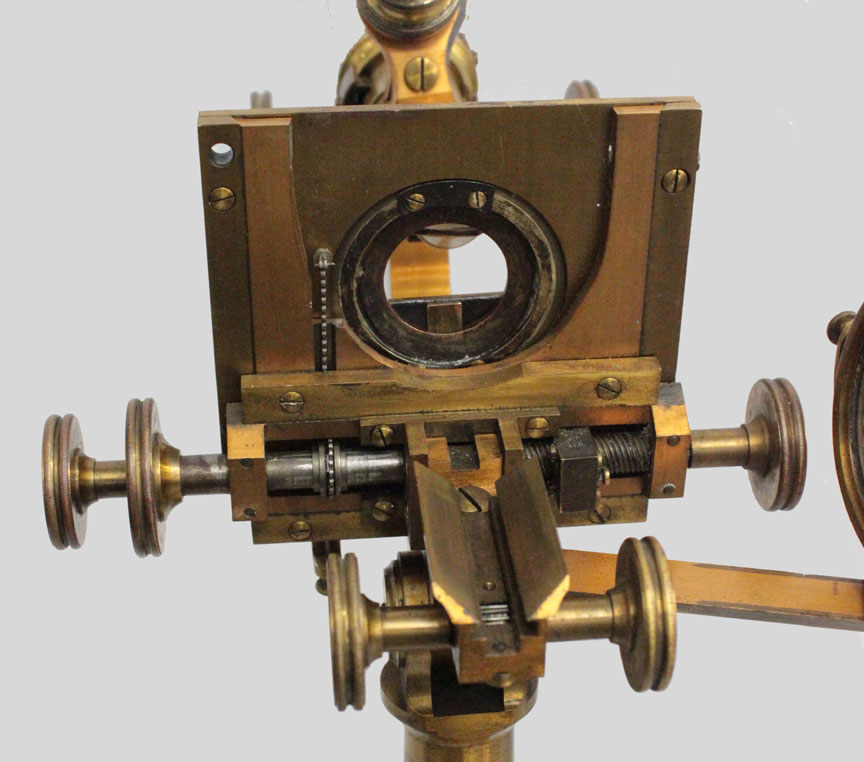

These pictures illustrate the stage from above (top image) and from below (bottom image). The middle image shows the indicators that register against the silver scale; A is for the Y-axis and B is for the X-axis. The bottom image (with substage holder removed) shows the fusee chain mechanism for Y-axis motion and the worm screw for X-axis movement.
