'ENGINEERING MICROSCOPE'

MAKER: KIRK TECHNOLOGY, U.K.

c. 1980'S

MODEL(S): 6006 Surface Inspection Model

 McArthur Surface Inspection Microscope
McArthur Surface Inspection Microscope

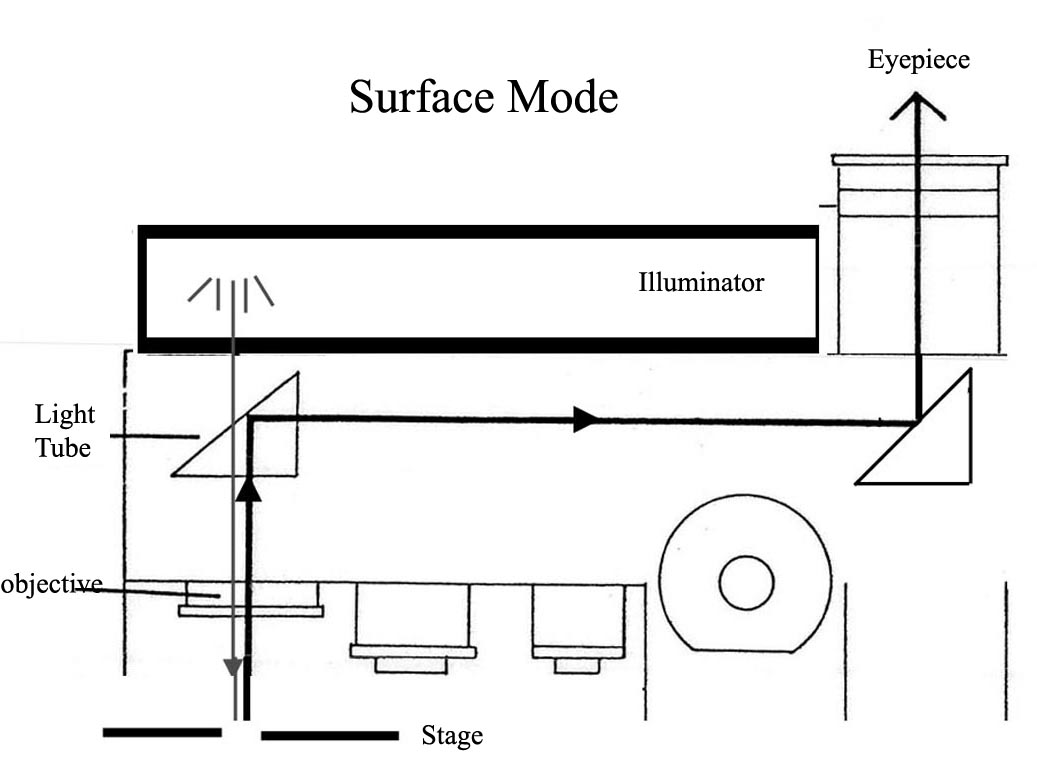

This Instrument is used with the stage in contact with the subject being studied. The light enters from above, so as to illuminate the opaque specimen. The reflecting surfaces on the specimen end of the optical tube can allow both transmitted light to pass through without being reflected, and also reflection of the image of the object being studied. The light from the light source is transmitted through the reflector to the specimen, while the specimen's illuminated image is reflected from this same reflector to the second reflector at the other side of the optical tube, and from there reflected up to the eyepiece.
