FOLDING LINEN PROVER MICROSCOPES:

19TH AND 20TH CENTURY

INTRODUCTION DESCRIPTION HISTORY

folding provers One variant of the linen prover, offered as early as the 1840's (and still made today). is the 'FOLDING LINEN PROVER' OR 'CLOTH MICROSCOPE TO FOLD FOR WAIST POCKET': These instruments, which can vary in size, fold flat when not in use and form a 'C' shape when erected. The earliest forms simply have a standard opening on the bottom, but later versions have this opening marked with calibrations of some kind. Most of the calibrated ones are engraved one one or more edges of the openings; one variation in this collection has 'points' built into the bottom for calibration. The examples in this collection date from the 19th and also the 20th Century. The large variation in size is illustrated by the image above. One variant, developed much later, but included here for size comparison, is a folding variety with a moving pointer, and is a folding thread counter. Unlike the others, this has no square opening base; in fact the base opens only with a single scale and the pointer. It still has a fixed focus. The folding provers seen here vary from 2 inches (52 mm) to 7/8 inches (22 mm) in height. The smallest measures 24 mm(l) by 16 mm(w) by 7 mm thick when folded.

For more information about all types of linen provers see the Article on This Website about all types of Linen Provers and Thread counters.

DESCRIPTIONS

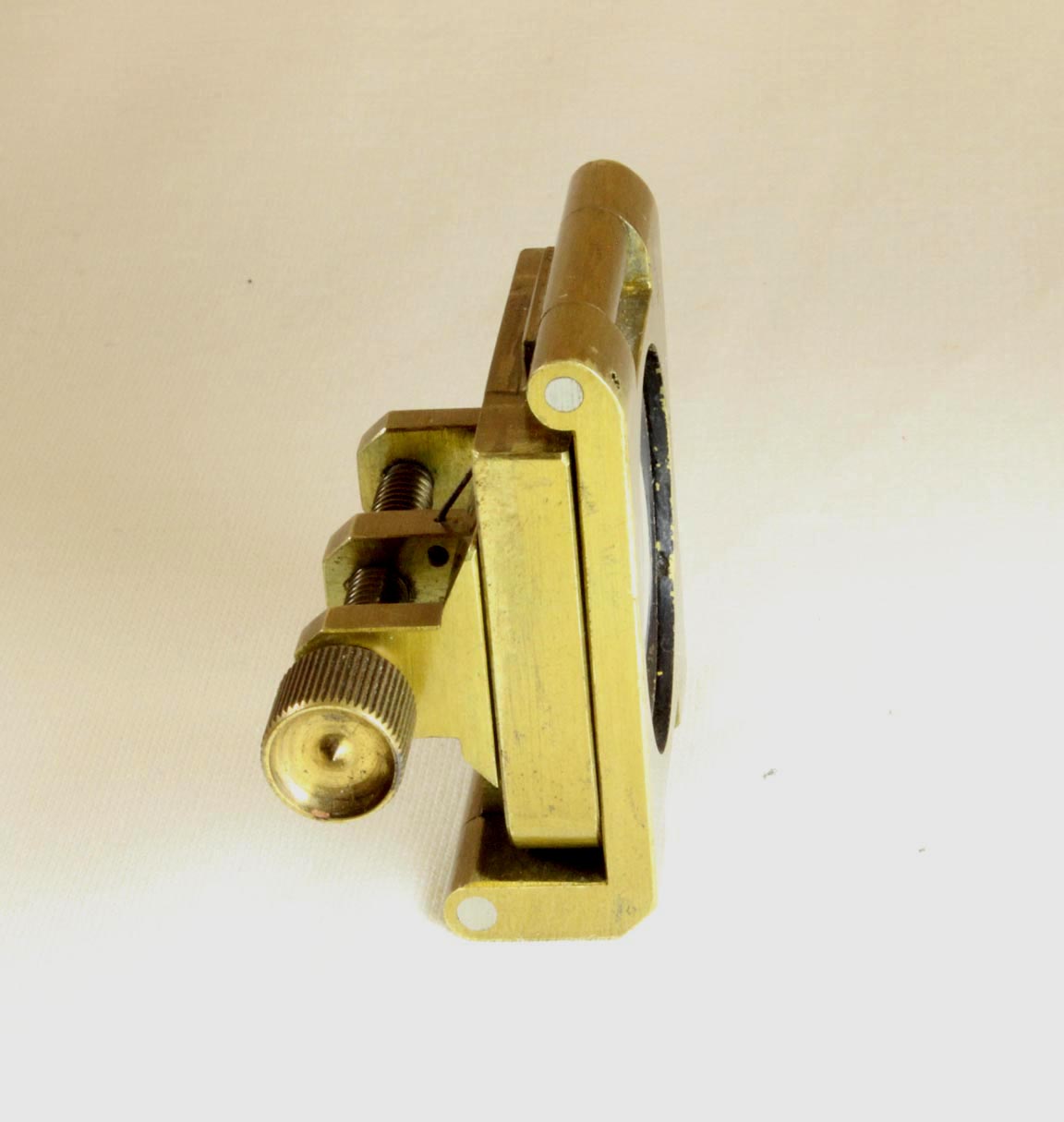

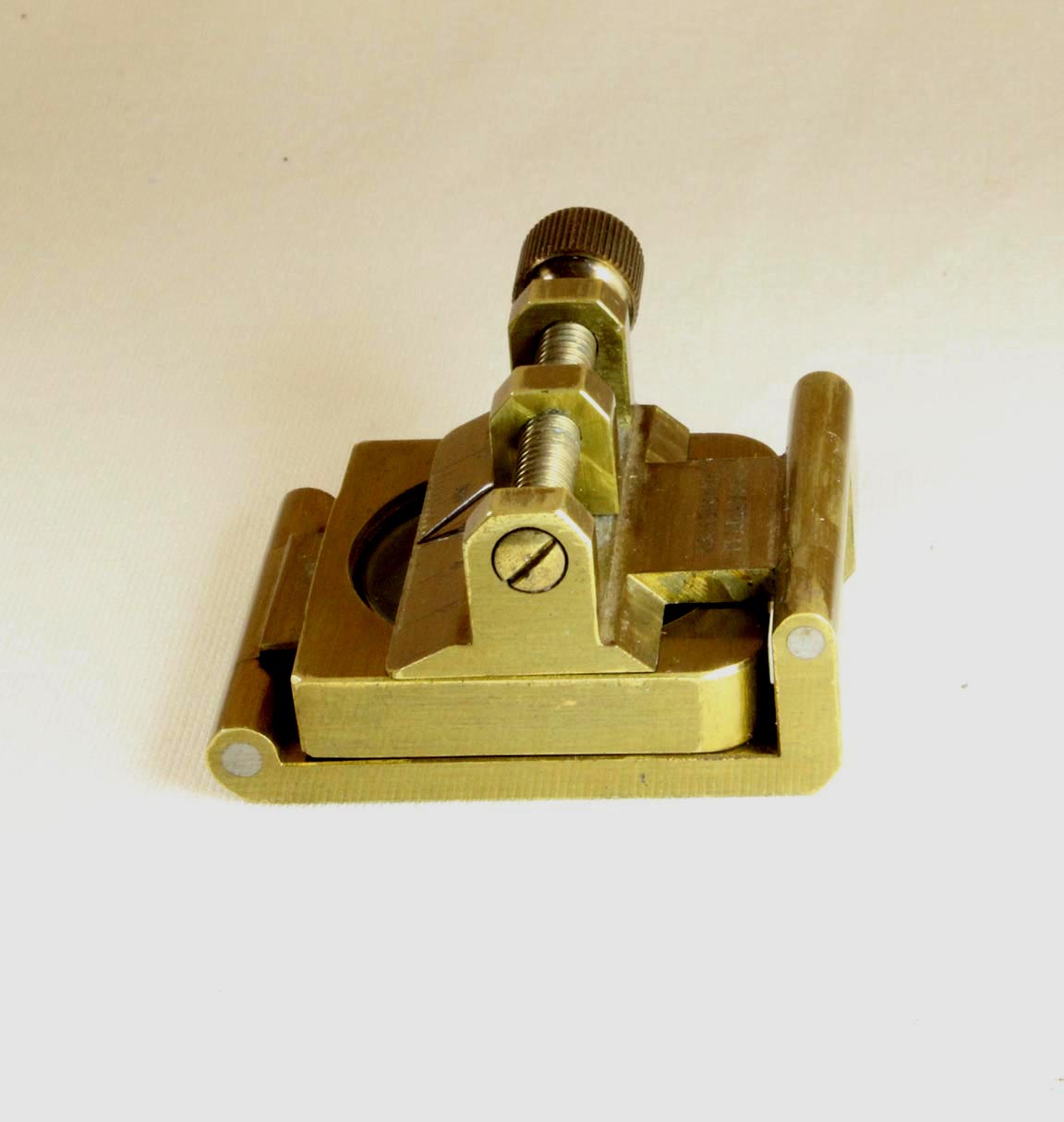

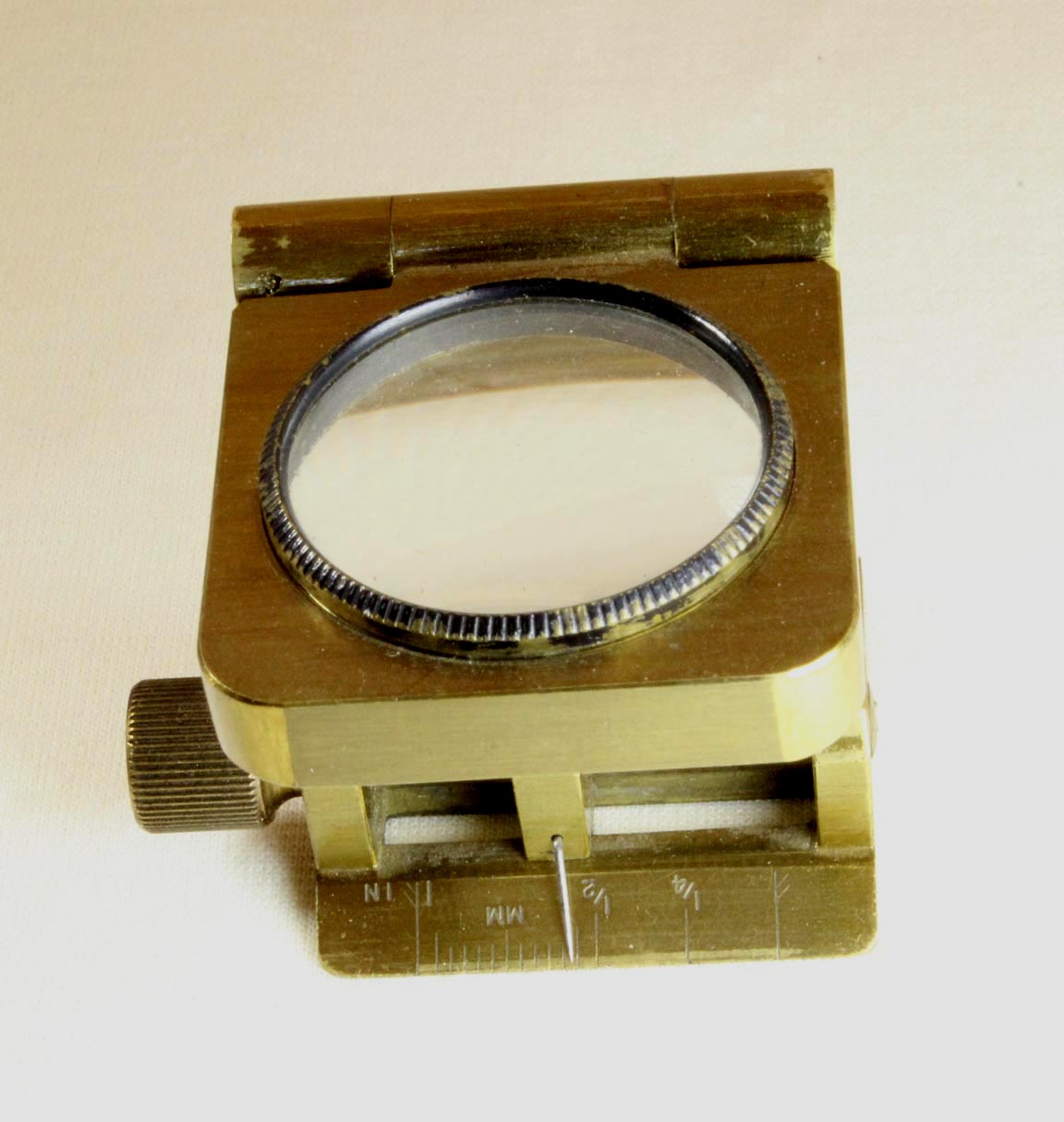

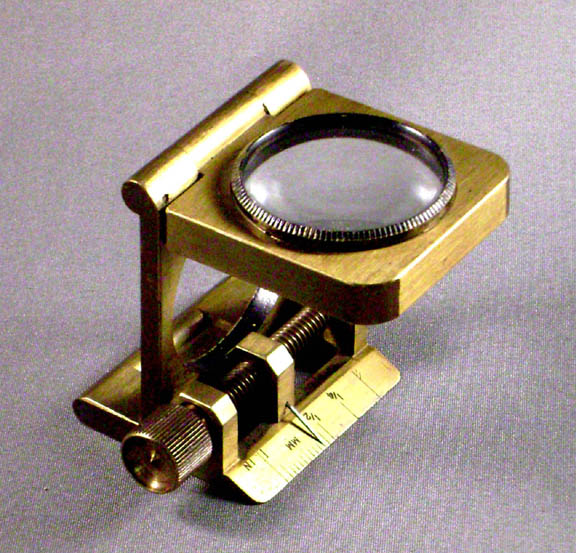

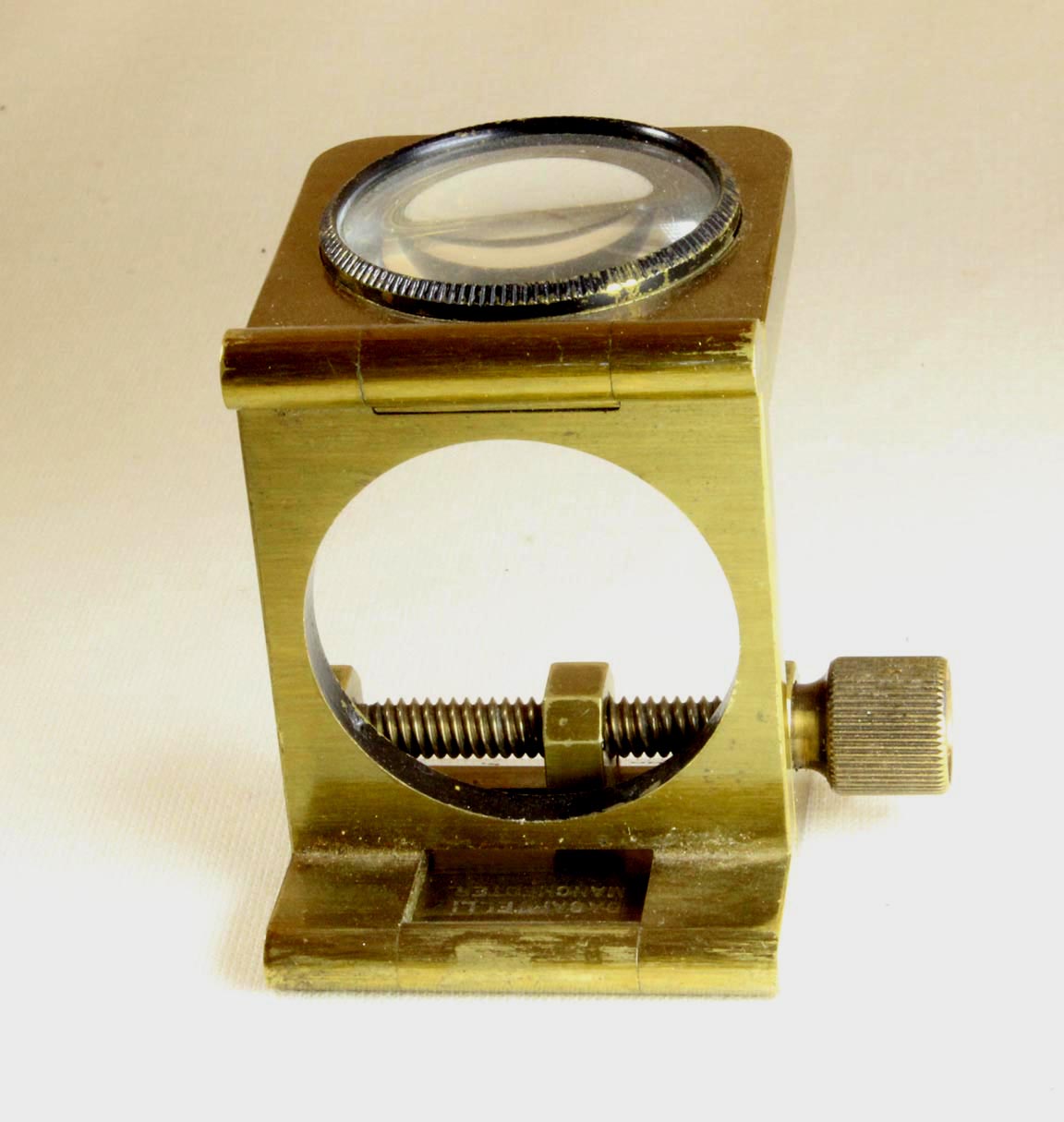

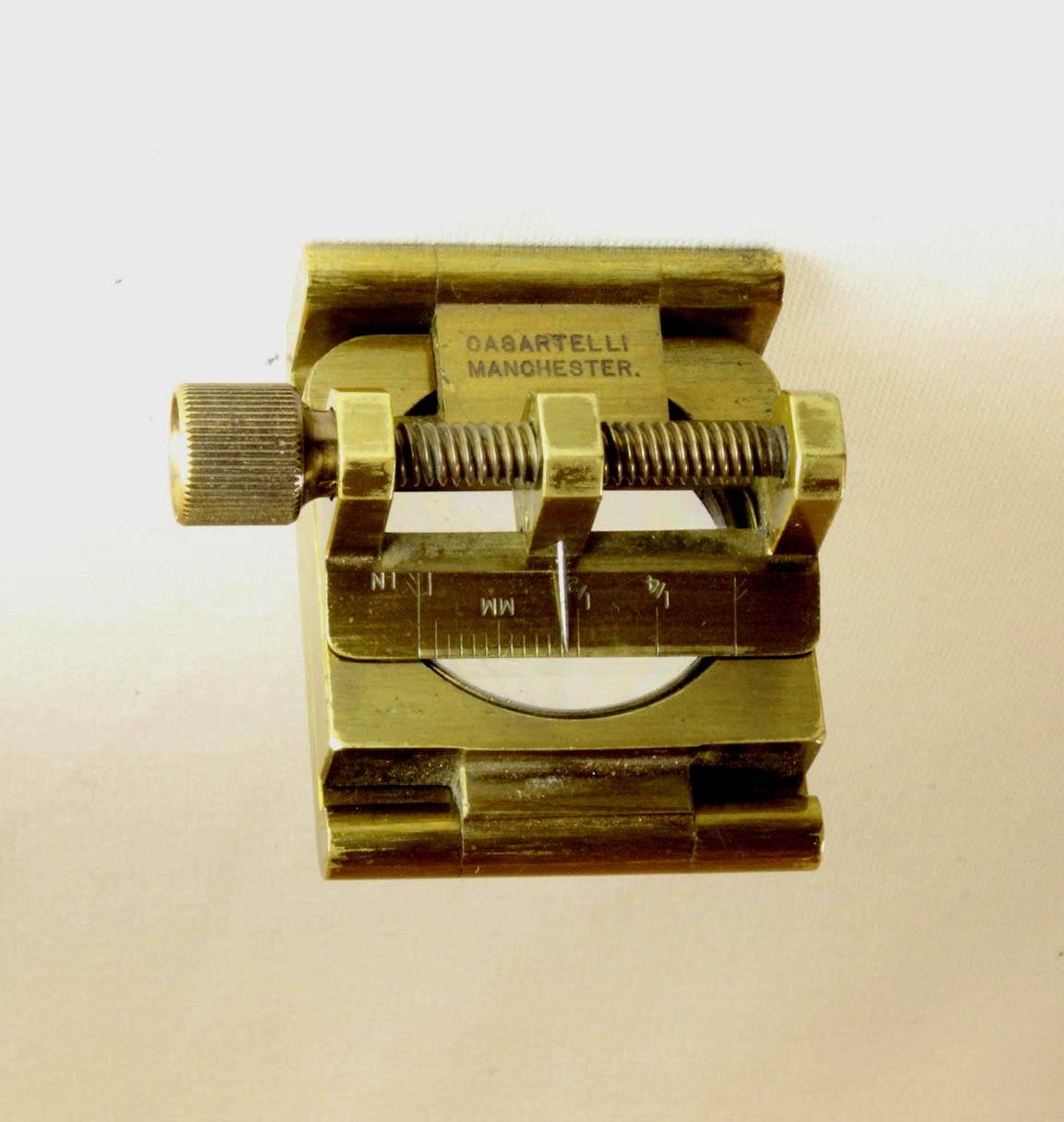

From the early 20th century, this prover, made by Casartelli of Manchester, combines the advantages of the folding linen prover with the thread counter.

 Microscope

 Microscope

Microscope

 Microscope

Microscope

Microscope

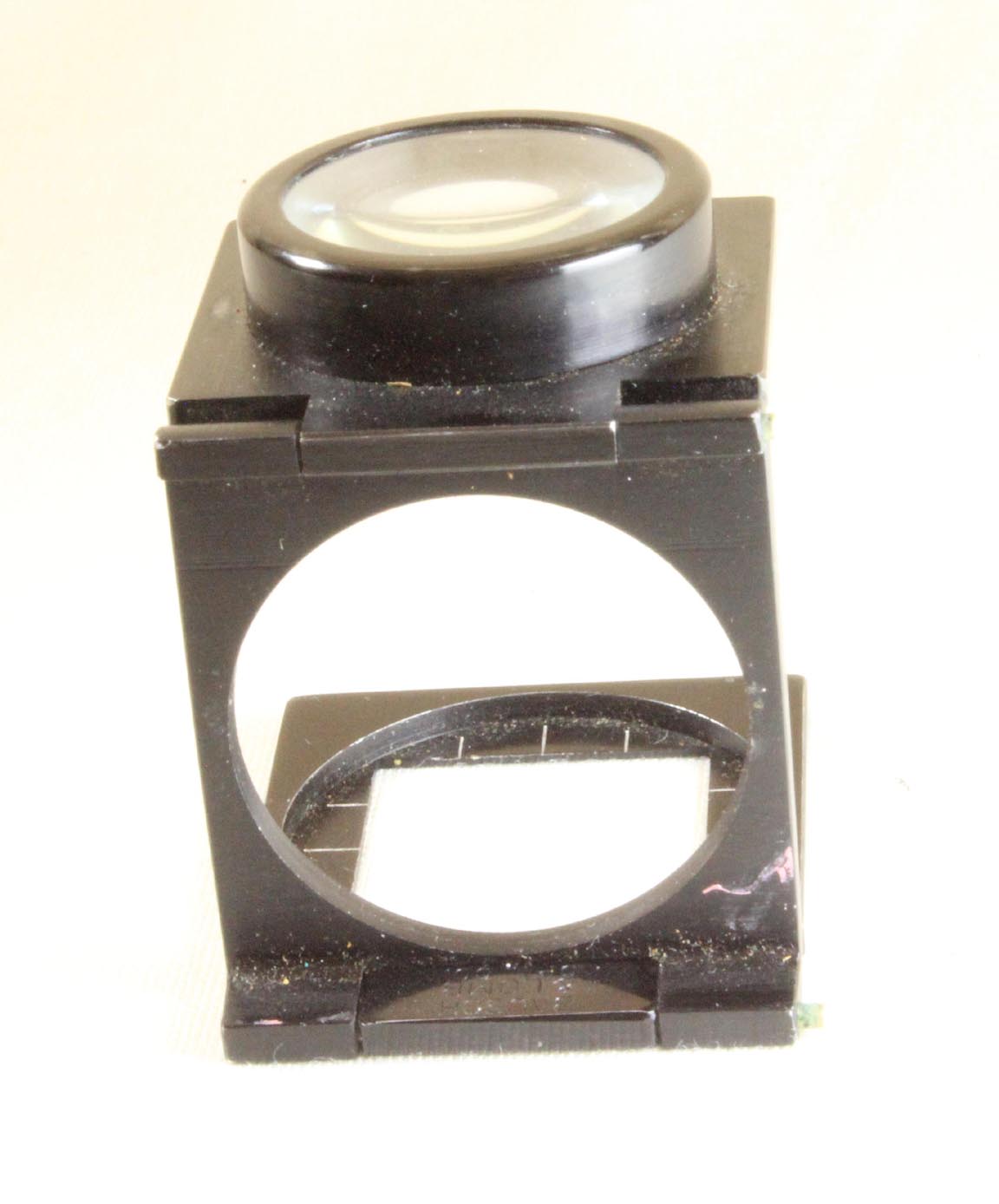

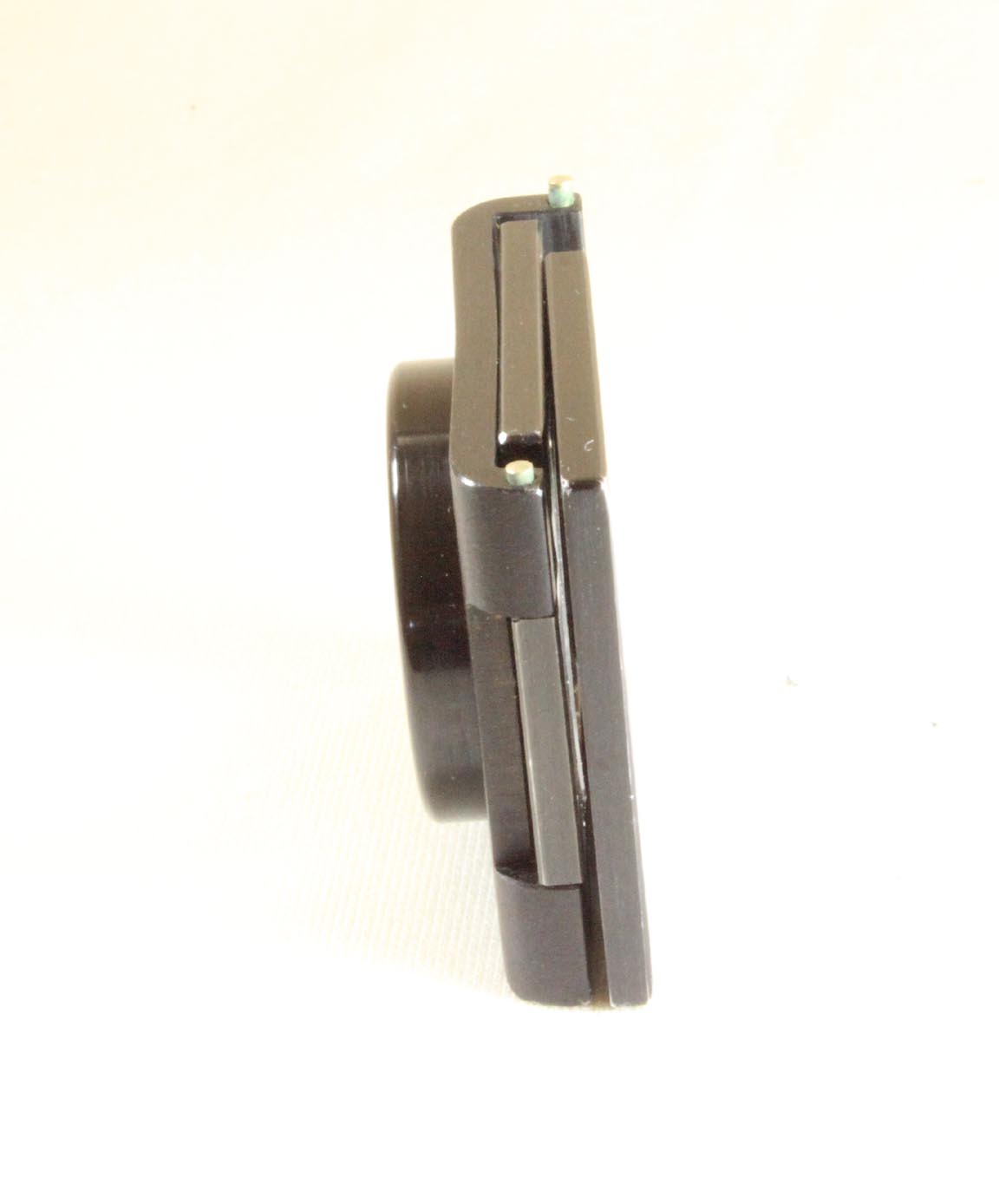

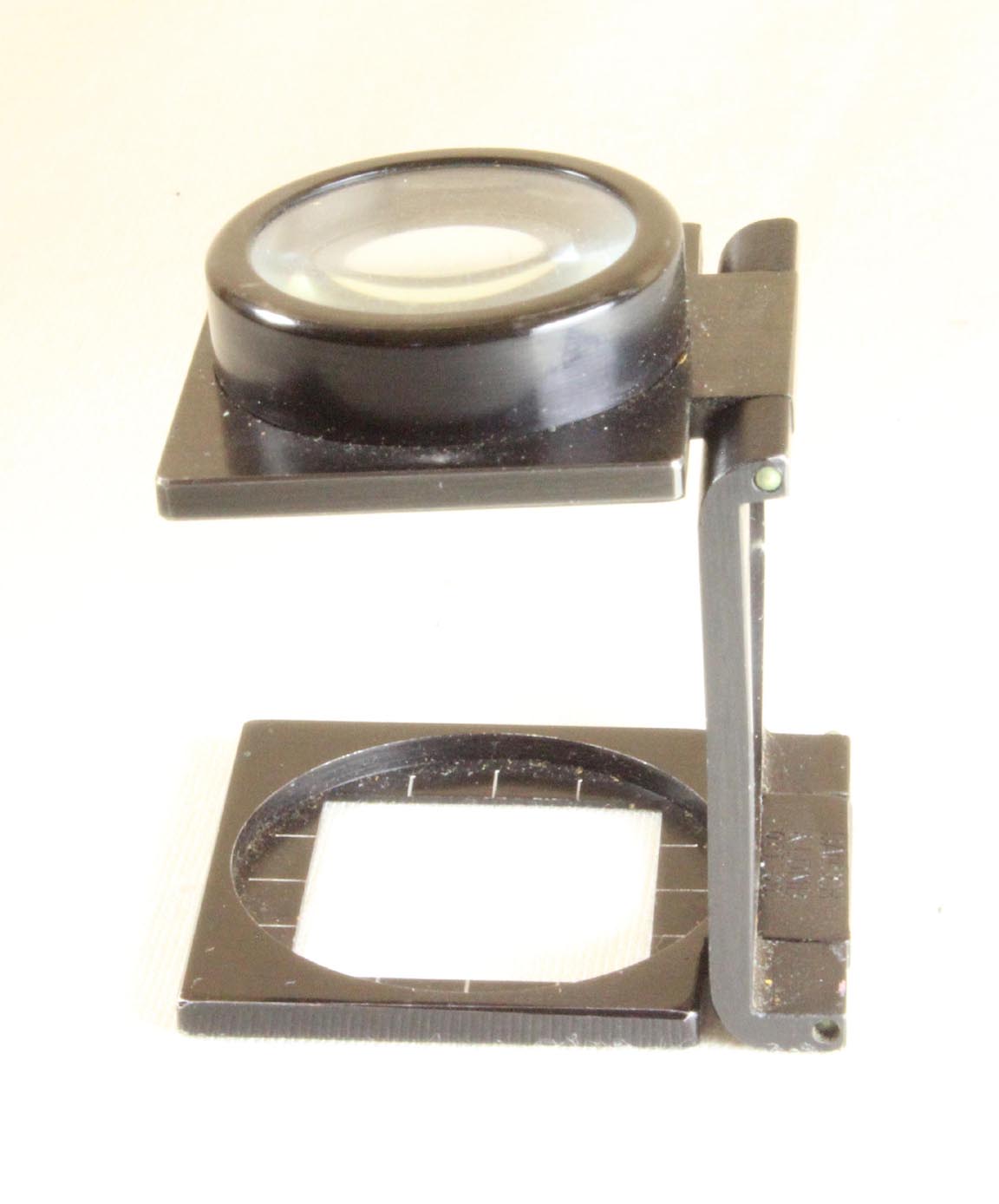

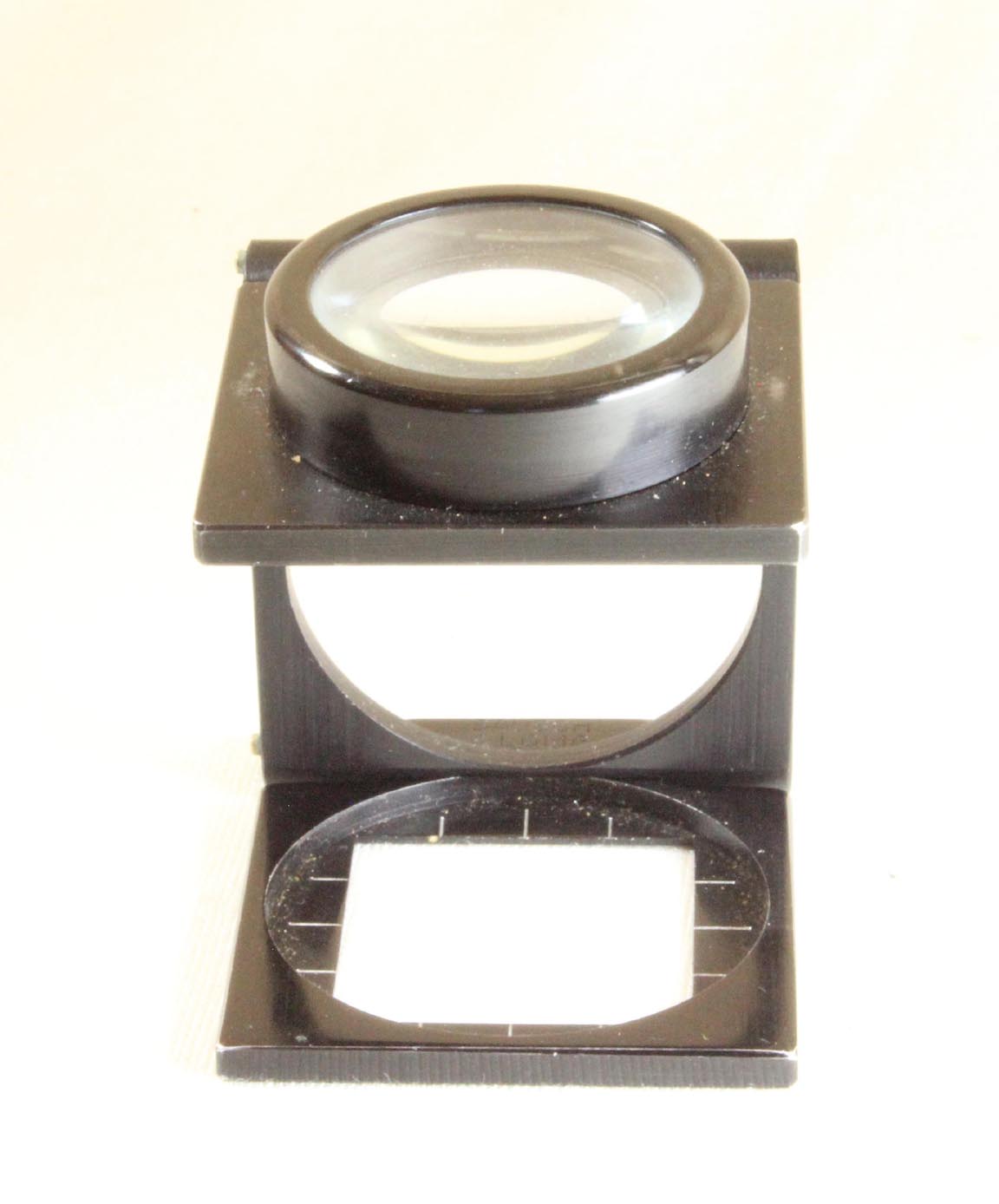

BL signature BL prover folded This folding prover, of lightweight alloy, is from the first half of the twentieth century and was made by Bausch & Lomb. It features engraved graduations on the open bottom.

 Microscope

Microscope

Microscope

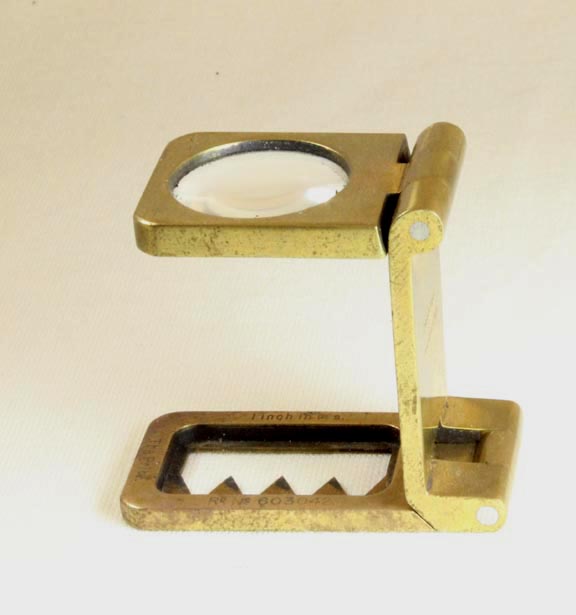

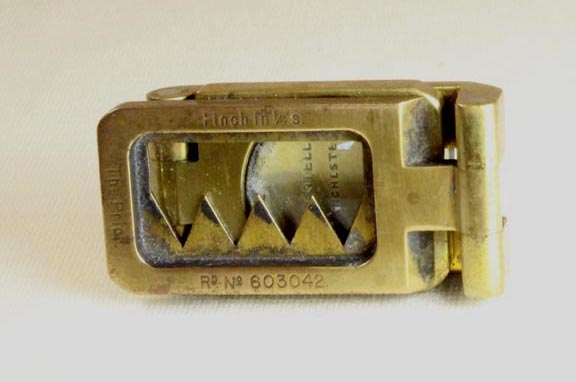

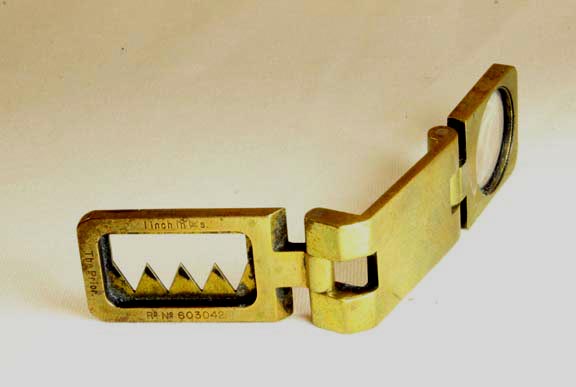

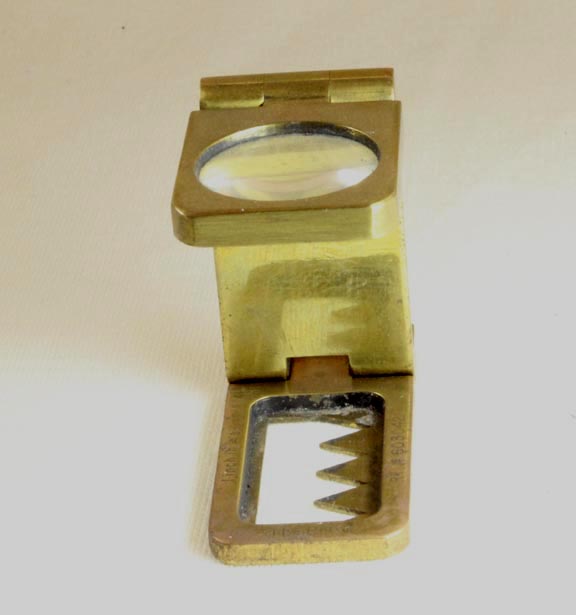

This instrument, again made by Casartelli, is designated with the model name 'The Prior' and is engraved not only with the maker's name, but its Rd number and its scale as '1 inch in 1/4.'   English, probably early 20th century.

 Microscope

 Microscope

Microscope

 Microscope

Microscope

 Microscope

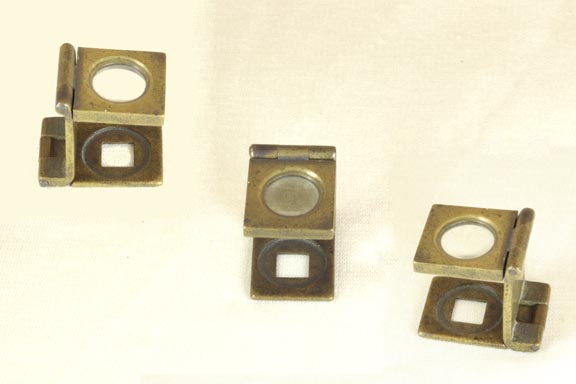

tiny prover foldedThis, the smallest folding linen prover I have ever seen, measures a mere 24 x 16 x 7 mm when folded. It is likely the oldest of the folding provers in the collection, and has no markings. Likely English or German, c. 1915*.

tiny linen prover

*Although this type was made from the early 19th century through the present day, it was part of a German microscope kit dating to about 1915, hence the attribution date.



HISTORY OF FOLDING LINEN PROVERS:

The folding type of linen prover which erects to a 'C' shape has been sold since at least the 1840's, and likely even before that. It is a proven design, still made and sold in the present day. For more about the history of linen provers, see the history section of the article about linen provers.
