COMPOUND MICROSCOPE

MAKER:ANDREW PRITCHARD

MODEL:'ACHROMATIC ENGISCOPE' (The 'Massive' Model)

c. 1854

SIGNED: 'Andrew Pritchard, 162 Fleet street. London'

SERIAL NUMBER: 560

THIS WEB PAGE AUTHORED BY: Dr Jurriaan de Groot

DESCRIPTION HISTORY

Please Click On Any Picture for a Larger Version

DESCRIPTION:
sigThis is an example of the massive version of Andrew Pritchard’s ‘Achromatic engiscope’ and is signed: ‘Andrew Pritchard, 162 Fleet street, London’ on the foot as well as on the body tube, and numbered ‘No 560’ on the front limb of the foot. This dates this instrument as having been made towards the end of the period 1838-1854 during which Pritchard traded from this address.

The microscope, alone weighs 9 lb, 9 1/2 ounces (4.35 Kg). It is supported by a massive tripod foot which has a span of 210 mm wide and 190 mm long, the weight bearing surfaces of which underneath are covered in thick leather. Unlike earlier Pritchard models, there is no swinging arm arising from the pillar to support a candle holder/condenser. Instead, there are 8.2 mm diameter holes at the end of each foot, presumably to take a vertical rod carrying these accessories. There is a collar clamp at the top of the heavy pillar allowing for an increase in height. When fully extended, this brings the height of the eye piece to 500 mm above the surface in working position. The inclination joint at the top of the pillar forms a clamp, which is tightened by a large knurled knob. This clamp extends to encircle the limb, which contains a triangular bar into which the rack is cut for the coarse focus, which is operated by a single large knurled head on the right similar in size as the one which tightens the clamp.

pritchard with vial holder There is a ring at the top of the limb, the tension on which is adjusted with a knurled knob, which when loosened, allows for rotation of the entire limb for 90°in both directions allowing for the use of a phial-holder attached by means of a bayonet fitting to the stage, so that a tube of liquid containing organisms can be held upright during examination. The image shown to the left illustrates this configuration using a re-created vial holder, the original one lacking from this outfit. Note that the limb in this configuration is both inclined and rotated.

The solid 11.4 mm thick brass stage measuring 105 x 87 mm has multiple apertures for insertion of stage accessories and is principally used to carry one of the accessory stages which are a push-fit into its 41 mm diameter aperture. There is also provision for a dove-tailed substage slider to carry a wheel of apertures, now no longer present. The tailpiece carries a sleeve with fastening screw for the plano-concave mirror. The horizontal arm is affixed to the top of the triangular bar and is fastened with a large knurled head, with another aperture at its proximal end for insertion of stage accessories. The end of this arm carries the 174 mm long body tube which has an internal diameter of 31.4 mm to take the eye pieces.

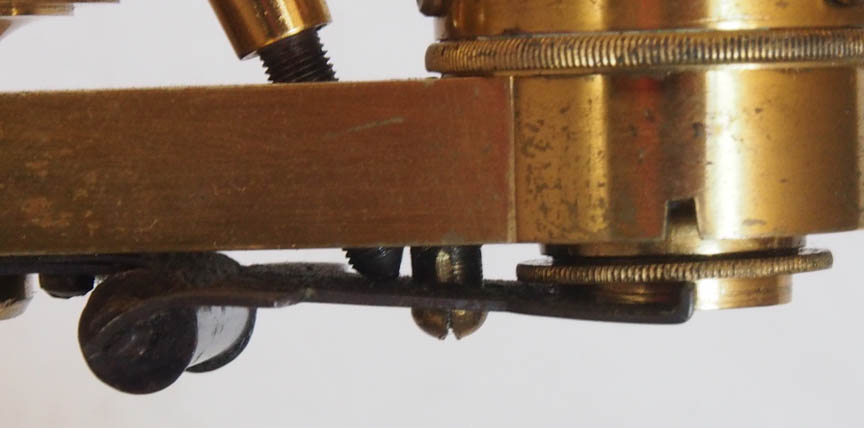

pritchard fine focuspritchard fine focusOn this example the fine adjustment is of a unique design, and different from other Pritchard microscopes known to be extant. It consists of a sliding inner sprung nosepiece, at its bottom end in contact with a forked leaf-shaped counter spring. The latter is affixed to a tensioned trunnion placed along the under surface of the arm, whereby fine adjustment is achieved by turning a knurled head operating a fine screw, placed diagonally at an angle of 45°, which causes downward displacement of the fork mechanism. This appears to be a departure from fine adjustment arrangements as present in other examples of this model, including those of a large ring situated at the lower end of the body tube, or a lateral screw half-way up the body tube activating a cone mechanism which lowers and raises the nosepiece. This is illustrative of this period of experimentation, during which a definitive form of fine adjustment was yet to be finalized.



ACCESSORIES:
accessories

EYEPIECES:
eyepiecesThe eyepieces with this microscope are of a 31.4 mm diameter and include a capped (characteristic of Pritchard microscopes) x5, and different x8, and x12 eye pieces which may not be original, but were with this set when purchased.

OBJECTIVES:

pritchard objectives pritchard objectives These all have the pre-RMS Pritchard thread of 14.5 mm diameter and include 1”, ½”, 1/3”, 1/7”, and 1/10” focal lengths. There is also a lens approximately 2” in focus of different appearance, but with a similar thread. The ½” consist of two achromatic doublets of different focus, which can be divided. The 1” consists of one achromatic button and has the interesting feature in that it carries within a small Nichol analyser for use with polarized light, which can be removed. The optical part of the 1/3” consist of two achromatic combinations and features a Lieberkuhn which slides over and screws onto to lens assembly. The 1/7” and 1/10” objectives are made up out of three achromatic doublets. These three higher powers are stored in brass cans, their lids engraved with ‘A. Pritchard, 162 Fleet street, London’.

Optical Data Obtained with Stage Micrometer and Cheshire Apertometer:
Magnification With Eyepieces
ObjectiveN.A.5X8X12X
2 in.-20 32 45
1 in.0.09366090
1/2 in.0.1867 120180
1/3 in.0.2080140200
1/7 in.0.51220375520
1/10 in.0.54285500700

STAGES AND STAGE ACCESSORIES:
pritchard stagespritchard stagespritchard stages Three additional stages are present, which can be slotted into the central aperture of the fixed rectangular stage plate:
A) A Bonanni spring stage of generous enough proportions to accommodate standard-size glass slides of 1 x 3 inches. This stage can accomodate the Pritchard type consisting of two slides, their edges bonded together with red sealing wax. A Bonanni stage is an unusual addition for the relatively late date of this microscope.
(B) A rectangular plain stage with two movable slide rests, and
(C) A beautifully finished Turrell mechanical stage.
Only the plain- and Bonanni stages have a thread cut into the lower end of their tubes to accommodate the substage accessory sleeve. The top plate of the Turrell stage can be rotated by hand through 360 °, and there is a bayonet fitting allowing for its removal in two positions 180° apart, so that a vial holder with the same male bayonet can be secured in its place on the stage. This allows for the observation of organisms in a vial of liquid with the microscope body rotated 90° to keep the fluid level in the horizontal plane. The stage forceps are a period replacement. As shown to the right, the Bonani stage can accomodate two slides in separate slots, one above the other, thus allowing the use of, e.g., a selenite slide below the object slide.

PARABOLOID:
paraboloid
There is a large parabolic illuminator for dark ground illumination protected by brass caps at both ends, which slides into a brass sleeve which screws into the lower tubular fittings of the Bonanni- and plain stages.

POLARIZED LIGHT ACCESSORIES:
pol accessoriespol accessories
A polarizer with knurled edge (a) fits into a blackened sleeve (b)which can be exchanged for the optical part of the paraboloid and rotated by hand(right).





analyzeranalyzer
A small Nicol prism analyzer (c) fits inside the 1 inch objective (d, left). It is held in place by the black cap (e) which screws on after the analyzer is put inside the objective. As seen to the right, a second analyzer in a signed can, may be used with the 1/3 inch and 1/7 inch objectives.

SLIDES:
The present owner has added a set of 44 slides all covered in blue paper as retailed by Andrew Pritchard, representing a selection of topics from the ‘Microscopic Cabinet’. These are contained in a mahogany case measuring 192 x 95 x 30 mm. A small selection of 1 x 3 inch sized glass Pritchard slides sealed along their edges with red wax are now also with the set. These slides, retailed by Pritchard, were probably made by a slide maker like William Darker for Pritchard. For additional information, please see Brian Stevenson's discussion of Pritchard's slides on his website, Microscopist.net.

CASE AND CANDLE HOLDER:

pritchard with candle holder
As shown at the top of this page, the microscope is stored in its original mahogany case measuring 445 mm(H) x 252 mm(W) x 257 mm(D). There are two drawers with recessed bone knobs which slide into the top left- hand corner housing the accessories. On the right are recesses top and bottom to store a brass rod carrying a candle holder and stage condenser on separate arms. When purchased, these were no longer present, but replacements were re-created to approximate the originals as shown on the Candle Illlumination Page, which also reviews the history of illumination using candles.

COMPARISON TO THE SMALLER ENGISCOPE: This microscope is supported on a much larger stand than the smaller Pritchard Achromatic Engiscope as can be seen on the Pritchard Compound Microscope Comparison Page.

CONDITION:
The microscope and its accessories are in excellent condition, with little or no loss of their semi-gloss golden lacquer finish.



HISTORY OF ANDREW PRITCHARD AND HIS MICROSCOPES:

Andrew Pritchard Next to his MicroscopeUndated Image, circa 1860, National Museum of Science & Industry, U.K.


Andrew Pritchard was born in 1804, the son of John Pritchard (1783-1853), a brick maker and property developer, and Ann Fleetwood (1780-1826). For unclear reasons Andrew was brought up by his maternal grandfather John Fleetwood (1750-1826), a cashier at the Bank of England. John’s sister, Hannah, was the second wife of Richard Varley (1751-1791). Hannah’s second son Cornelius Varley became well-known as a water colorist and for his interest in optical instruments, particularly with his introduction, in 1811, of his graphic telescope, a camera lucida-type device adaptable both for drawing portraits as well as landscapes. Andrew was apprenticed to Cornelius in 1821 to learn ‘the business of Science, or the Occupation of an Artist in general’. The family relationship between Cornelius and Andrew later became closer, as a consequence of Cornelius’ marriage to Elizabeth Levinia Straker, for in 1829 Andrew married Caroline Isabella, Elizabeth’s sister. Cornelius Varley would later make his own somewhat idiosyncratic microscopes fitted with a lever operated stage of his own design, an example of which is shown on this site.

As an apprentice, Pritchard became familiar with optical glass working, which he and Varley were to extend into making lenses of diamond, which has a higher refractive index, and lower dispersion properties than glass. It was when Cornelius was away on patent business in 1824 that Andrew attempted to make the first diamond lens at the request of C.R. Goring, a medical practitioner with a great interest in improving the optical performance of the microscope. Their association was to last 16 years and resulted in a number of simple microscopes being made with diamond and sapphire lenses, which outperformed those with glass lenses by a degree, and numerical apertures of some 0.26 were achieved. These were time-consuming and expensive to produce however and were never made in great numbers.

Around that same time John Cuthbert (1783-1854)was making reflecting microscopes, using mirror optics, while the optician William Tulley (1789-1835) was working on the development of achromatic microscope objectives at the request first of C.R. Goring and subsequently of the wine merchant Joseph Jackson Lister (1786-1869). The history of development during this period is complex, but the breakthrough was the Lister/Tulley microscope fitted with a combination of objective lenses made by Tulley himself and those sourced from France made by Chevalier, who had mastered the technique of making small achromatic doublets made up of a bonded combination of a biconvex crown glass- and a plano-concave lens made of flint glass, contained in a small brass cell, which could be combined with other such units, thereafter known as ‘French buttons’. The key to further development appeared in 1830 with Lister's paper on the theory of microscope objectives, highlighting the need to combine objective elements at a specific distance, so that their aplanatic foci coincided, in order to produce an objective which was as free of chromatic and spherical aberration, as possible.

Pritchard's Aplanatic EngiscopeIllustration from: Natural History of the Animalcules, 1834.

Hereafter, Prichard took the opportunity to establish himself as the leading London supplier of achromatic microscopes by opening his own business at 18 Picket street, close to the Strand. While it was his jewel lenses which brought him first to prominence, it was the achromatic microscope (aka the ‘aplanatic engiscope’, a term coined by Goring) he introduced in 1834, which seems to have provided the growth of his business. Given that other opticians such as Tulley, and Dollond were very occupied with telescope manufacture, Andrew Pritchard was, at this early stage, probably the only retailer who was able to make achromatic microscopes available to the public in reasonable numbers. Being a keen entrepreneur, but also microscopist himself, Pritchard succeeded in increasing interest in, and demand for, the microscope. He did this in part by publishing a number of works on the microscope and microscopic world, with additional input from C.R Goring: ‘Microscopic Illustrations’ was published in 1830, followed by ‘The Microscopic Cabinet’(1832), ‘The Natural History of the Animalcules’(1834), ‘A list of two thousand microscopic objects’(1835), ‘Micrographia’(1835),and ‘A History of the Infusoria, living and Fossil’(1842). Most of these went through several editions, and in their time received an enthusiastic following.

It is worth noting that it was normal for an optical instrument maker/retailer such as Pritchard to outsource some of his components and to obtain these from others such as from Hugh Powell and Andrew Ross, who were at that stage still ‘working for the trade’. It is possible, that Hugh Powell was involved in the design of what later became known as the distinctive ‘Pritchard model’ microscope, an image of which was first printed in ‘The Natural History of The Animalcules’ in 1834. This also explains why there are examples of microscopes of this model(which, in itself bears a resemblance to early Chevalier models) which display many features of Hugh Powell’s work; Powell later started signing his own microscopes bearing this design, and there are also those signed by Pritchard which are fitted with a short side-lever fine focus characteristic of the work of Ross. To complicate matters further, Pritchard himself must also have provided to the trade as there are Pritchard model microscopes which are signed with the names of other opticians, such as Dollond and Bate, whereas others are unsigned.

The skill required to make and assemble the minute components of the new achromatic objectives represented a considerable challenge, and it appears that Pritchard outsourced this work wherever possible, importing achromatic doublets made in Paris by Vincent & Charles Chevalier, while some of his earlier objectives may have been made by Ross. Later during the 1830’s he also sourced high quality objectives from Hugh Powell, whereas some prominent customers, such as Lady Caledon turned to Powell directly to obtain a 1/8 inch objective for her Pritchard microscope.

Pritchard moved his business from 18 Pickett street to 312 Strand in 1829, and was trading from both addresses between 1831-1835, before occupying the 263 Strand address between 1835-1838. Microscopes signed by him and signed with one of these locations are in private and museum collections, which assists with dating.

massive pritchard of the National Museum of Scotland, from Nuthall Many of these instruments conform to the general ‘Pritchard design’, but with the development of more complex and sophisticated instruments which emerged from Ross’, Smith’s, and Powell’s workshops from the late 1830’s onwards (and beginning to be signed by themselves), Pritchard attempted his own improvements by selling much more massive versions of his design, such as the microscope illustrated on this page. Nuttall has remarked that 'Visually these lacked the appeal of those introduced by his former ‘workmen’ and survive only in small numbers', the simplified versions without inclination joint being more widely sold. Pritchard also sold simple microscopes of various kinds, an example of which from about 1837 is a 'pocket microscope' as shown on this site.

By 1838 Andrew Prichard had transferred his business to 162 Fleet street, from where he continued to trade until 1854, and it is likely, that Hugh Powell continued to supply him until about 1840, where after it is likely that the brass work was undertaken in house by his own workers, including his apprentice Alfred Eden.

Towards the second part of the Fleet street period, Pritchard also started engraving his microscopes with a serial number. The numbering system may have started much earlier, as according to Nuttall: 'A letter accompanying a compound microscope he sold in December 1835, from 263 Strand, perhaps provides some indication of overall production numbers by this date: for though the instrument itself is un-numbered it is referred to as No.66 in the instructions for its use'.

From about 1840 onward, Pritchard’s business started to suffer from the widespread economic depression, and he branched out into the Patent Business, which was at the time a more lucrative source of income. Inevitably this shift in emphasis caused Pritchard to fall from the first rank of microscope suppliers. He did continue to sell his microscopes, as well as his characteristic paper-covered slides in small leather-covered boxes and mahogany ‘Microscopic cabinets’, in addition to the 1 x 3 glass slides containing wood sections sandwiched in between, sealed on the edges by red wax, a method thought to have been originated by William Darker. Imported optics were subsequently obtained from Camille Nachet, who had previously worked for Chevalier. Pritchard also sold prepared slides made by Bourgogne.

By now, Pritchard’s standing as a microscope manufacturer was on the wane. Nuttall recounts that: 'His reputation was scarred by the Jury’s comments at the 1851 Exhibition, at which, though he gained an honourable mention, his microscopes were dismissed as old fashioned'. G.L’E Turner adds to this: 'and his objectives indifferent', which is not surprising, as they were still made up out of imported ‘French buttons’, albeit with elements of different focal lengths, and ‘sort-of’ complying with Lister’s principles of combining aplanatic foci. As such, a Prichard 1/10” objective with an N.A. of 0.54 could no longer compete with its Ross or Powell equivalent, with a shorter working distance, larger top lens diameter, and an N.A. in the region of 0.90. When his first compound microscopes were sold to an eager public, his work was much more regarded as state-of-the-art, and Pritchard was the first supplier to fulfil a need. His contribution to microscopy as viewed from the present remains considerable however. As an entrepreneur and popularizer of the microscope, summed up rather well by the palaeontologist Gideon Mantell, who had praised Pritchard as a supplier of effective microscopes to his geological friends as late as 1846: 'By his various works he has greatly promoted the taste for microscopical observations'.

Pritchard retired from the microscopical business in 1854, then placing the Fleet street business in the hands of his brother in law, Samuel Straker, his manager from no later than 1849. Straker continued to advertise Pritchard’s microscopes, but by January 1855 they had parted their ways. Pritchard kept the Fleet street business open until the end of 1858, only opening to customers on Tuesdays and Saturday mornings. By then, the substantial building was sub-tenanted. Andrew Pritchard died in 1882, after a long retirement. This may not have been the end of microscopes with features resembling those of Pritchard’s. This will be the topic of a future feature on this site.
