CIRCUIT STAGE VAN HEURCK MICROSCOPE (Holos Oil Immersion
Condenser)
c. 1910
Maker: W. WATSON & SONS LTD.

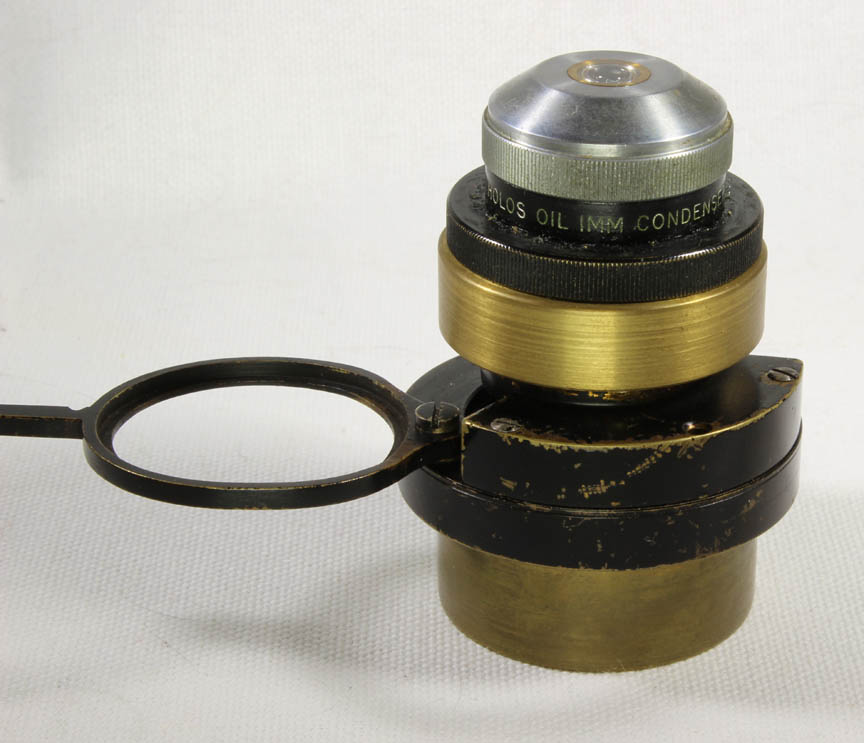

This (later version) of the 'Holoscopic Oil
Immersion Condenser' is
suitable for use with the highest power objectives and has an immersion
front which may be removed for use with dry objectives of medium to
high power. It

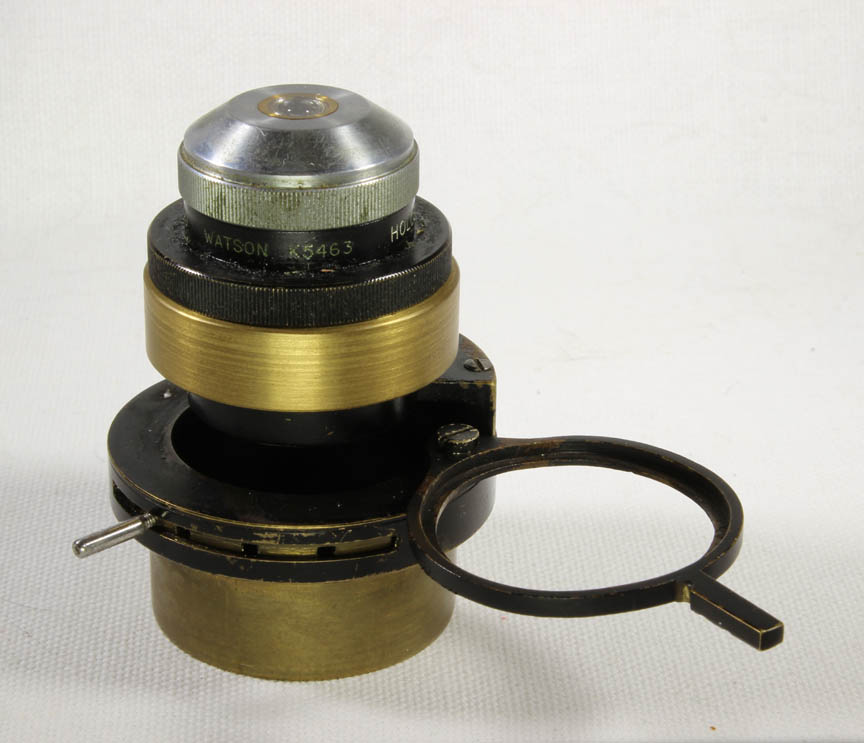

is signed: 'HOLOS OIL IMM CONDENSER 5.5 mm
n.a. 1.30 WATSON
K5463'. This condenser fits the same condenser housing as the 'Universal' Condenser, but also fits another housing it is pictured with, using a brass adapter; a similar adapter is used to fit another unsigned (likely Abbe) condenser to the same mount. The earlier
version of the Holos Oil immersion condenser
with my Grand Van Heurck microscope has a smaller diameter and fits a different mount.
Both condenser mounts have a nice iris diaphragm and a swing-out
filter/dark-ground-stop holder, each of diameter suitable for their
different condenser sizes. A different set of stops is needed for each, although a a Traviss Stop can be substituted for many of the various fixed dark ground stops for the older model of Holos oil immersion condenser.
